Radio (Japan) – fault diagnosis

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Radio (Japan) – fault diagnosis

Radio (Japan)Radio (Japan) – fault diagnosis

RADIO (JAPAN) – FAULT DIAGNOSIS

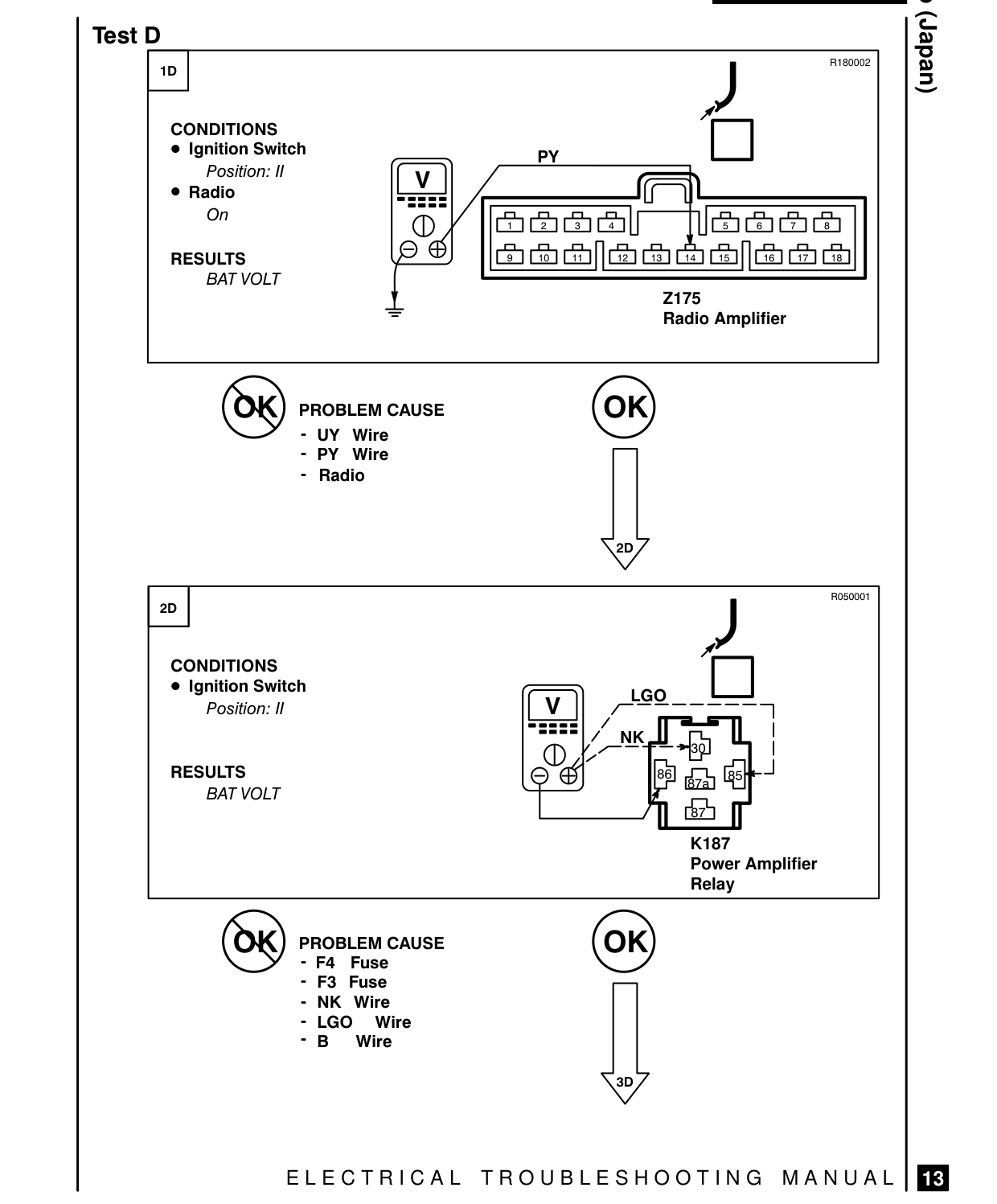

Test D

CONDITIONS ® Ignition Switch Position: Il eo Radio cemmm On RESULTS 0 &) mE BAT VOLT

(5) PROBLEM CAUSE - UY Wire - PY Wire - Radio

CONDITIONS ° Ignition Switch Position: Il RESULTS BAT VOLT

PROBLEM CAUSE - F4 Fuse F3 Fuse - NK Wire - LGO Wire Wire

ELECTRICAL TROUBLESHOOTING MANUAL

lo)

R180002

PY

ed

2175 Radio Amplifier

R050001

LGO —d ya EH aD Sami a) SY ac] Bra] gs - sh K187 Power Amplifier Relay

(0K)

[EH

14 Electrical
