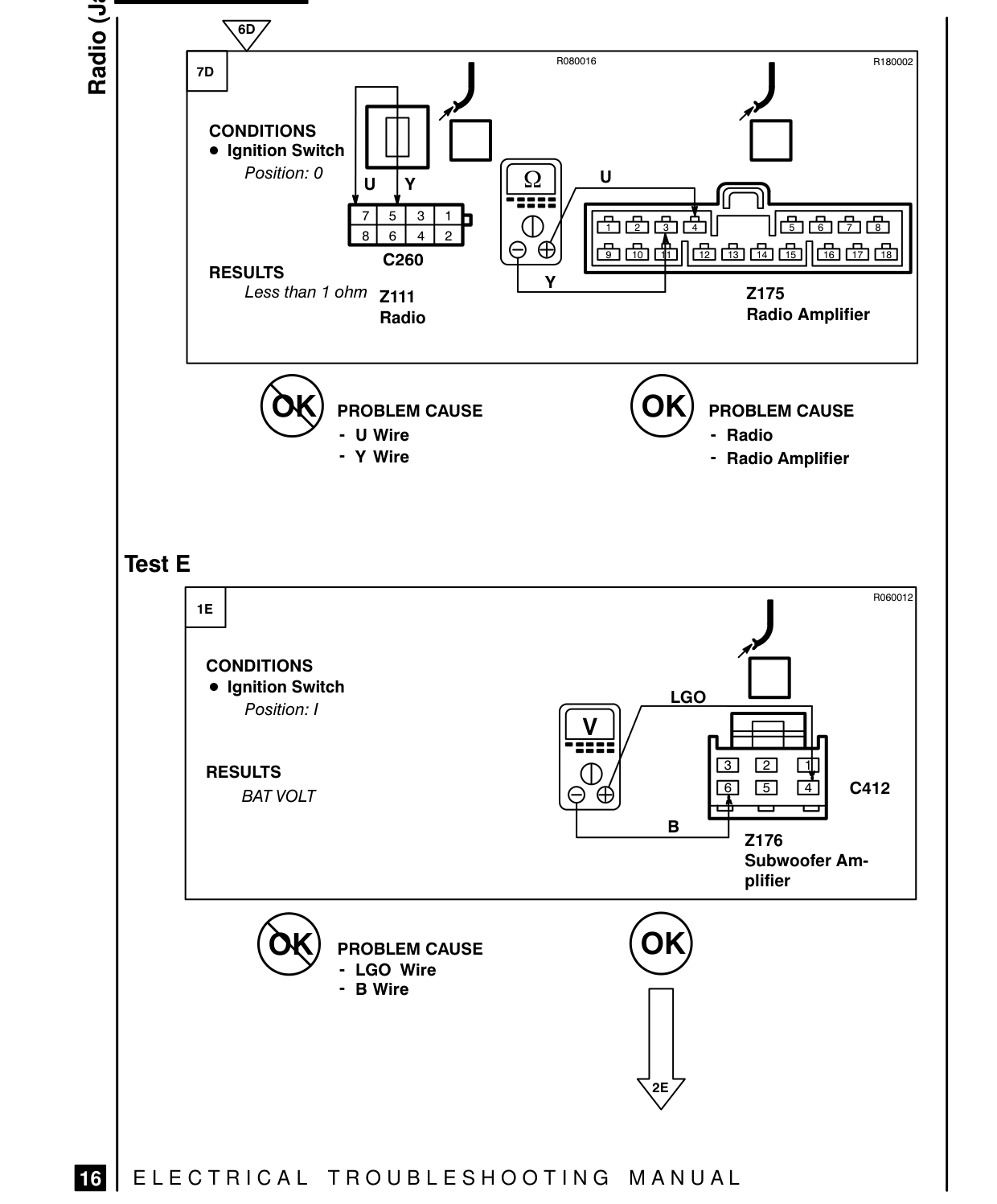

RADIO (JAPAN) – FAULT DIAGNOSIS

ie ke

CONDITIONS e Ignition Switch Position: 0

HD | RESULTS C260 Less than 1 ohm z111 Radio

(5) PROBLEM CAUSE - U Wire - Y Wire

Test E

ie | CONDITIONS ® Ignition Switch Position:

BAT VOLT

(59) PROBLEM CAUSE - LGO Wire - B Wire

EB | ELECTRICAL TROUBLESHOOTING MANUAL

R080016 R180002

Sl (BEd: Z175 Radio Amplifier

PROBLEM CAUSE Radio - Radio Amplifier

R060012

LGO

C412 [Cp TT] 2176 Subwoofer Amplifier

14 Electrical
