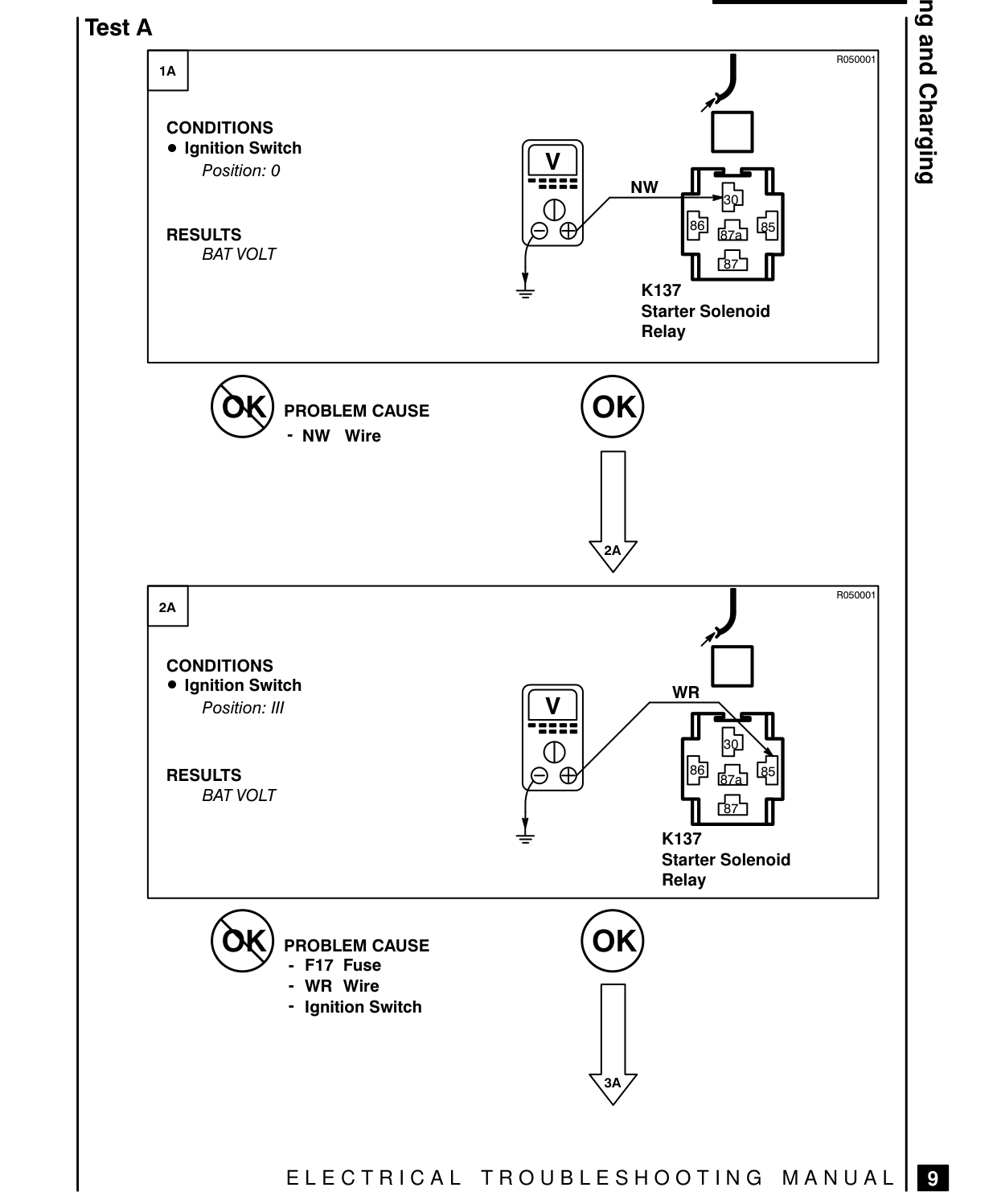

STARTING AND CHARGING – FAULT DIAGNOSIS

Test A

CONDITIONS ® Ignition Switch Position: 0

RESULTS BAT VOLT

(5) PROBLEM CAUSE - NW Wire

CONDITIONS ® Ignition Switch Position: Ill

RESULTS BAT VOLT

(59) PROBLEM CAUSE F17 Fuse

- WR Wire Ignition Switch

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

R050001

awl w gh Gl |E=H K137 Starter Solenoid Relay

RO50001

WR

OG dh Ge IE=N| K137 Starter Solenoid Relay
