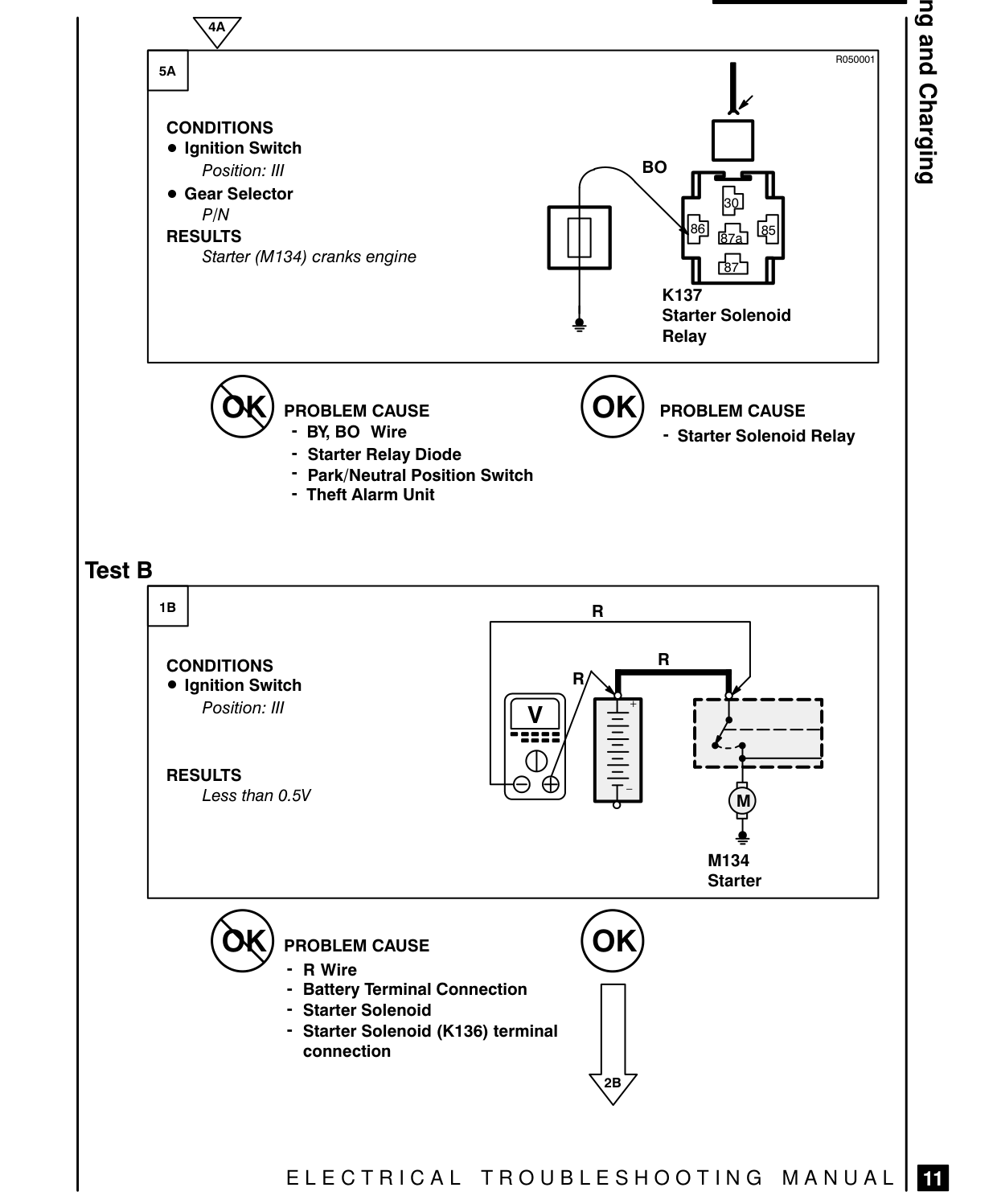

Starting and charging – fault diagnosis

STARTING AND CHARGING – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch Position: lll e Gear Selector PIN RESULTS Starter (M134) cranks engine

(5) PROBLEM CAUSE - BY, BO Wire - Starter Relay Diode Park/Neutral Position Switch - Theft Alarm Unit

Test B

CONDITIONS ® Ignition Switch ho Position: lll

RESULTS Less than 0.5V

(59) PROBLEM CAUSE - R Wire - Battery Terminal Connection Starter Solenoid - Starter Solenoid (K136) terminal connection

ELECTRICAL TROUBLESHOOTING MANUAL | ki

R050001

BO byl il e8l hy Bh K137 Starter Solenoid Relay

PROBLEM CAUSE - Starter Solenoid Relay

FE Dy t=——f——="

M134 Starter
