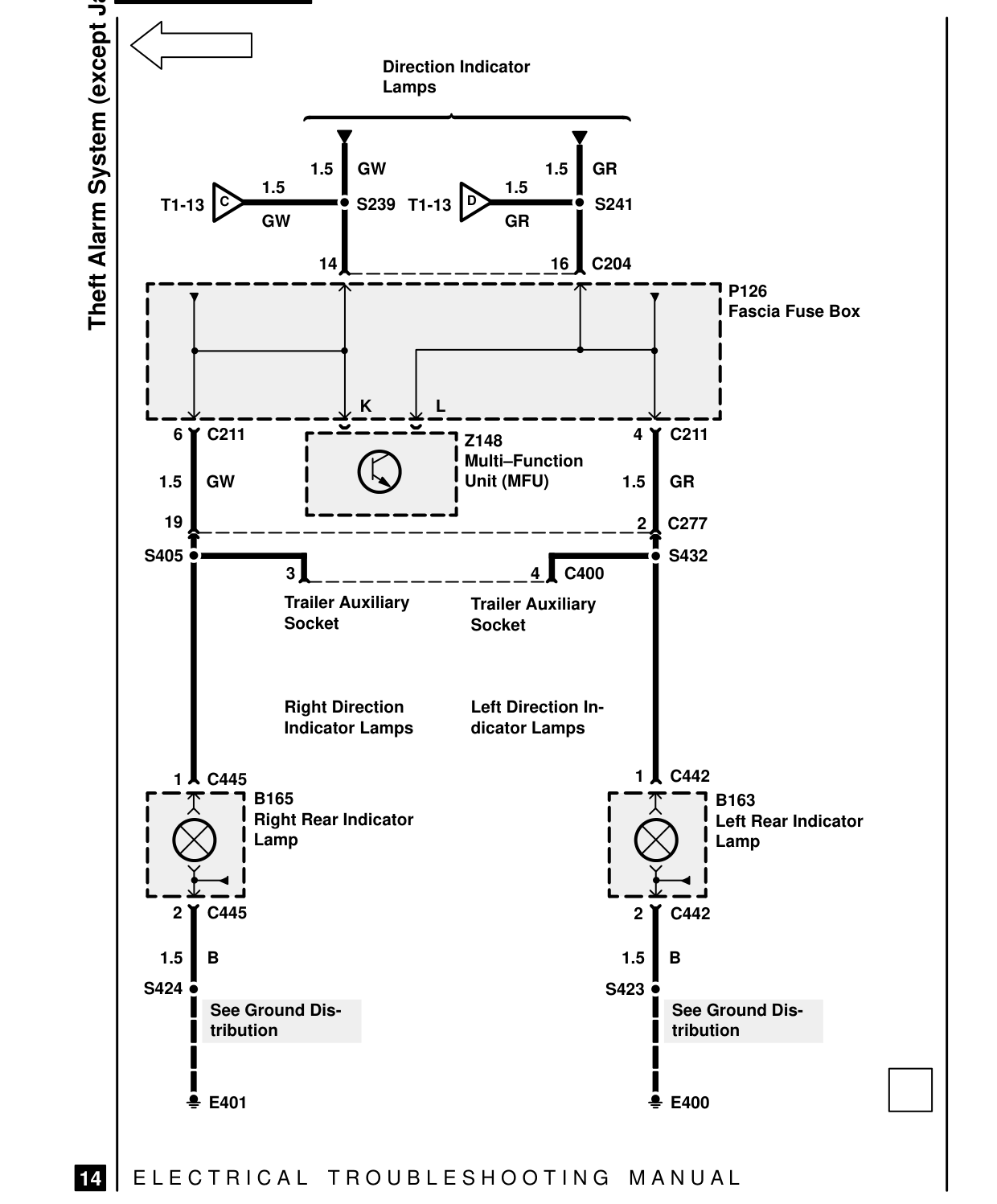

Theft alarm system – circuit diagram

THEFT ALARM SYSTEM – CIRCUIT DIAGRAM

Theft Alarm System (except Japan) Direction Indicator Lamps

1.5 GW 1.5 C S239 T1-13 T1-13 GW

14

K 6 C211

1.5 GW

19

S405 3 Trailer Auxiliary Socket

Right Direction Indicator Lamps

1 C445 B165 Right Rear Indicator Lamp

2 C445

1.5 B S424 See Ground Dis- tribution

E401

E L E C T R I C A L T R O U B L E S H O O T I N G

14

1.5 GR 1.5 D S241 GR

16 C204 P126 Fascia Fuse Box

L 4 C211 Z148 Multi-Function Unit (MFU) 1.5 GR

2 C277 S432 C400 4 Trailer Auxiliary Socket

Left Direction In- dicator Lamps

1 C442 B163 Left Rear Indicator Lamp

2 C442

1.5 B S423 See Ground Dis- tribution

E400

M A N U A L
