Theft alarm system – circuit diagram

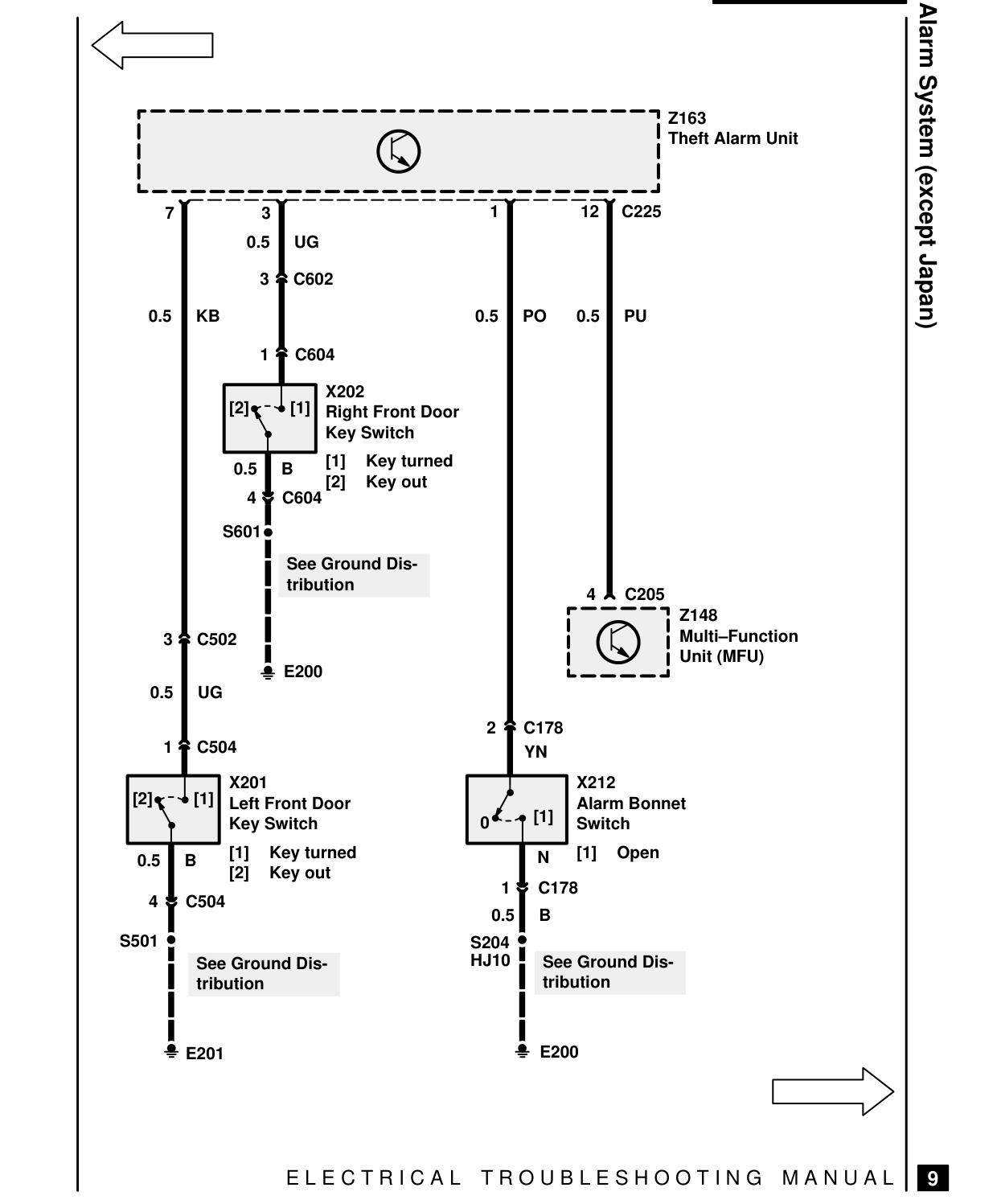

THEFT ALARM SYSTEM – CIRCUIT DIAGRAM

7 3 0.5 UG

3 C602

0.5 KB

1 C604

X202 [2] [1] Right Front Door Key Switch [1] Key turned 0.5 B [2] Key out 4 C604

S601 See Ground Dis- tribution

3 C502 E200 0.5 UG

1 C504

X201 [2] [1] Left Front Door Key Switch [1] Key turned 0.5 B [2] Key out 4 C504

S501 S204 HJ10 See Ground Dis- tribution

E201

E L E C T R I C A L

Theft Alarm System (except Japan) Z163 Theft Alarm Unit

1 12 C225

0.5 PO 0.5 PU

4 C205 Z148 Multi-Function Unit (MFU)

2 C178 YN X212 Alarm Bonnet [1] 0 Switch [1] Open N 1 C178 0.5 B

See Ground Dis- tribution

E200
