Theft alarm system – fault diagnosis

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Theft alarm system – fault diagnosis

Theft alarm systemTheft alarm system – fault diagnosis

THEFT ALARM SYSTEM – FAULT DIAGNOSIS

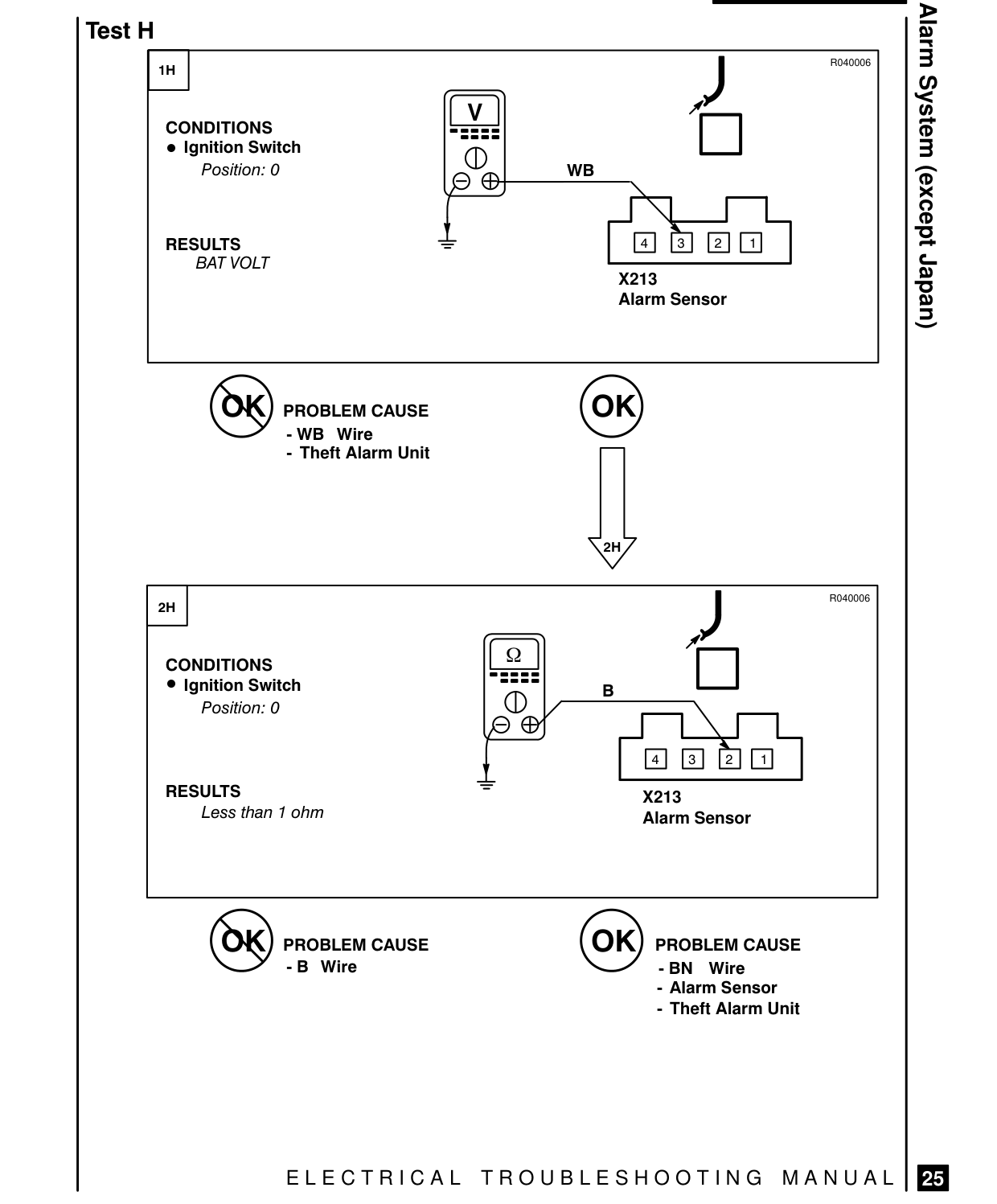

Test H

CONDITIONS e Ignition Switch tess Position: 0

RESULTS BAT VOLT

(59) PROBLEM CAUSE -WB Wire - Theft Alarm Unit B28 CONDITIONS ® Ignition Switch Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE -B Wire

ELECTRICAL TROUBLESHOOTING MANUAL | EJ

R040006

WB ry

X213 Eo] Alarm Sensor Q 2

R040006 LJ moos DO Oo OD

X213 Alarm Sensor

PROBLEM CAUSE -BN Wire - Alarm Sensor - Theft Alarm Unit
