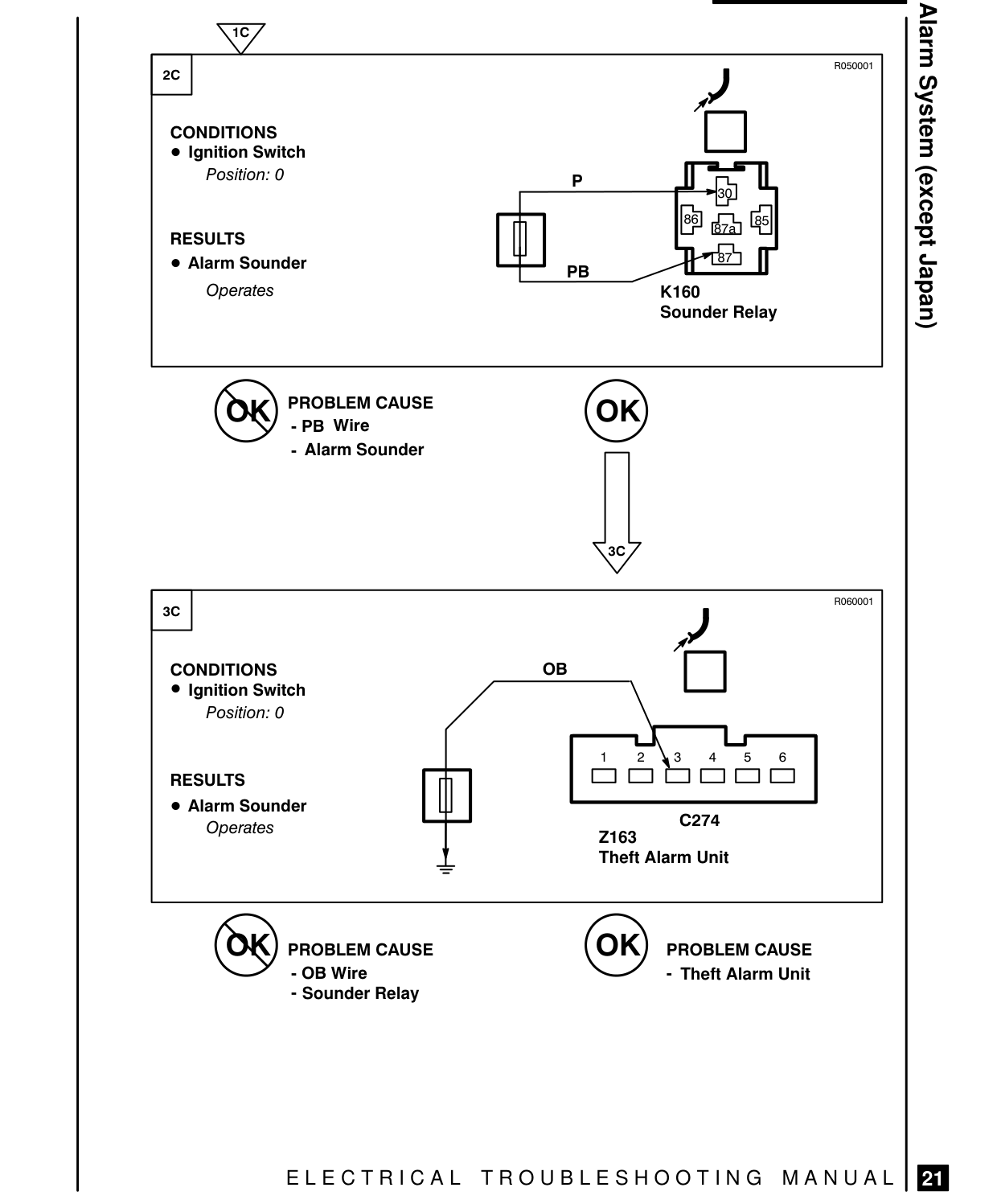

THEFT ALARM SYSTEM – FAULT DIAGNOSIS
2c
e Ignition Switch CONDITIONS
Position: 0
RESULTS e Alarm Sounder Operates
PROBLEM CAUSE
- PB Wire
- AlarmSounder
CONDITIONS ® Ignition Switch Position: 0
RESULTS e Alarm Sounder Operates
(59) PROBLEM CAUSE - OB Wire - Sounder Relay
ELECTRICAL TROUBLESHOOTING MANUAL
R050001 pr
zh [57 K160 Ls Sounder Relay
R060001
OB
NN I J I I
7163 Theft Alarm Unit
PROBLEM CAUSE - Theft Alarm Unit
[El
