Theft alarm system – fault diagnosis

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Theft alarm system – fault diagnosis

Theft alarm systemTheft alarm system – fault diagnosis

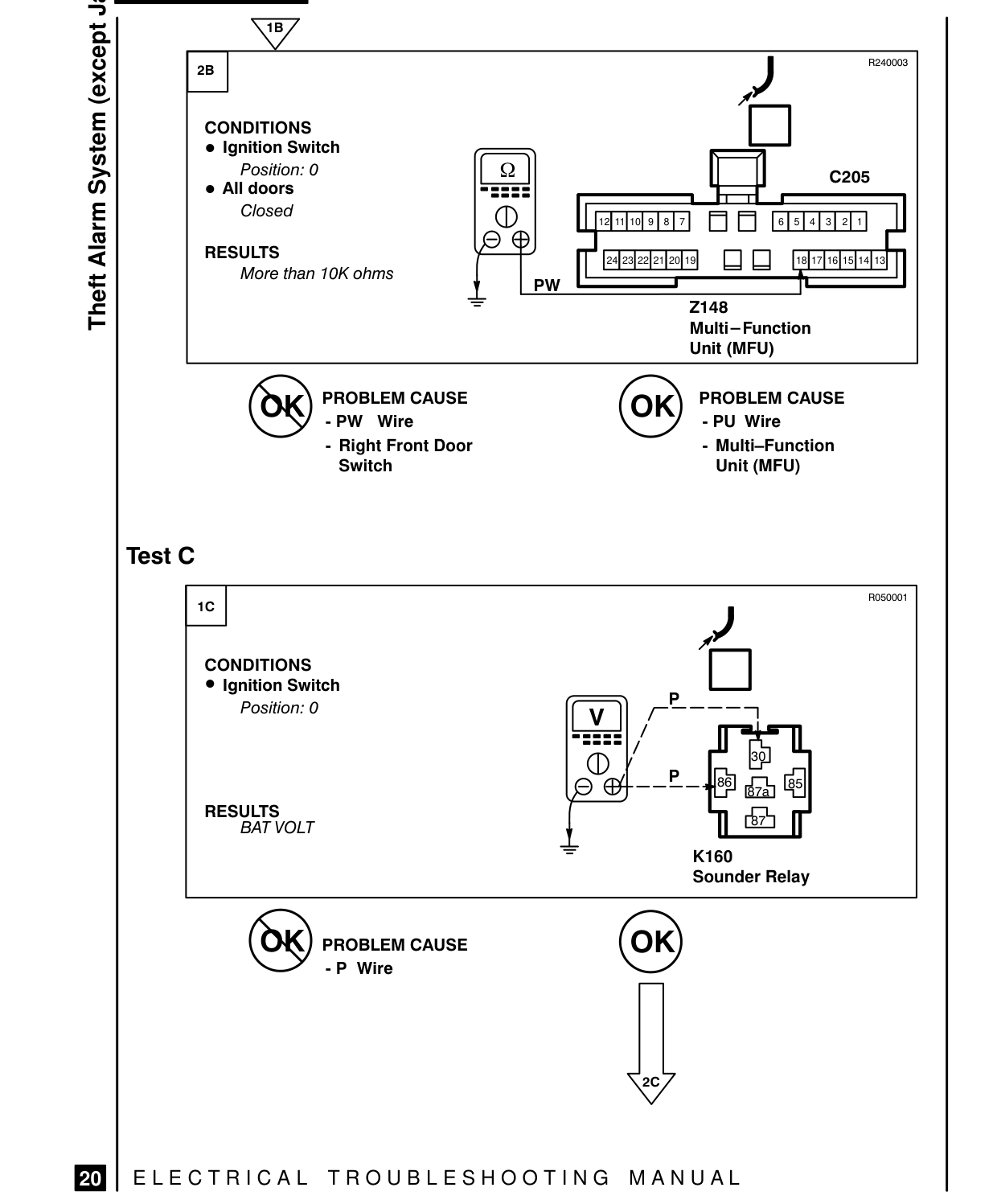

THEFT ALARM SYSTEM – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch 7p) e All doors Position: 0

Closed RESULTS More than 10K ohms

PROBLEM CAUSE

- PW Wire

- Right Front Door Switch

Test C

CONDITIONS ® Ignition Switch Position: 0

RESULTS BAT VOLT

(59) PROBLEM CAUSE -P Wire

ELECTRICAL TROUBLESHOOTING MANUAL

ou C205 O | [Fm oo mmm SA PW | Lez £ = E plrlelellof | Z148 Multi— Function Unit (MFU)

PROBLEM CAUSE

- PU Wire

- Multi-Function Unit (MFU)

R050001

} mT

0&2 oh | ts K160 Sounder Relay

37 General
