Discovery II
ENGINE - V8
12-2-76 OVERHAUL

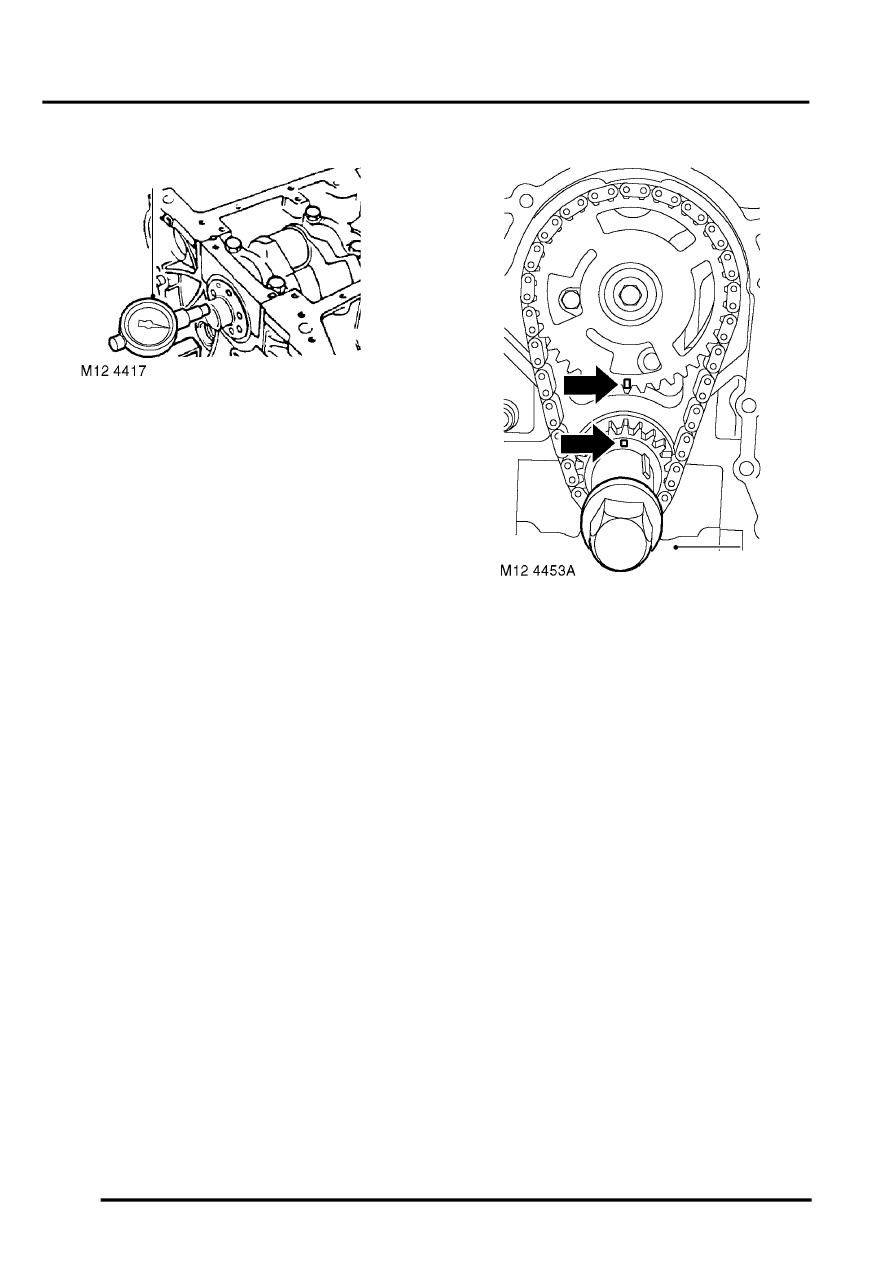

19. Attach a DTI to front of cylinder block, move
crankshaft rearwards, position stylus of gauge
on end of crankshaft and zero gauge.
20. Move crankshaft forwards, measure and
record end-float obtained.
l
Crankshaft end-float = 0.08 to 0.26 mm
(0.003 to 0.01 in).
21. Fit connecting rod bearings.
ENGINE - V8, OVERHAUL, Bearings
22. Clean timing chain and gears.
23. Clean ends of crankshaft and camshaft.
24. Lubricate timing chain assembly with clean
engine oil.
25. Align timing marks and fit timing chain
assembly.
26. Fit camshaft gear bolt and tighten to 50 Nm (37
lbf.ft).
27. Fit timing gear cover gasket.
ENGINE - V8, OVERHAUL, Gasket -
28. Clean crankshaft pulley.
29. Fit crankshaft pulley.
30. Fit crankshaft pulley bolt and tighten to 270 Nm
(200 lbf.ft).
31. Remove tool LRT-12-080 from crankshaft
pulley.
32. Clean oil filter and mating face.
33. Lubricate oil filter seal and fit filter to oil pump.
34. Ensure drive belt pulleys are clean and
damage free.
35. Fit auxiliary drive belt to pulleys.
36. Fit crankshaft rear oil seal.
