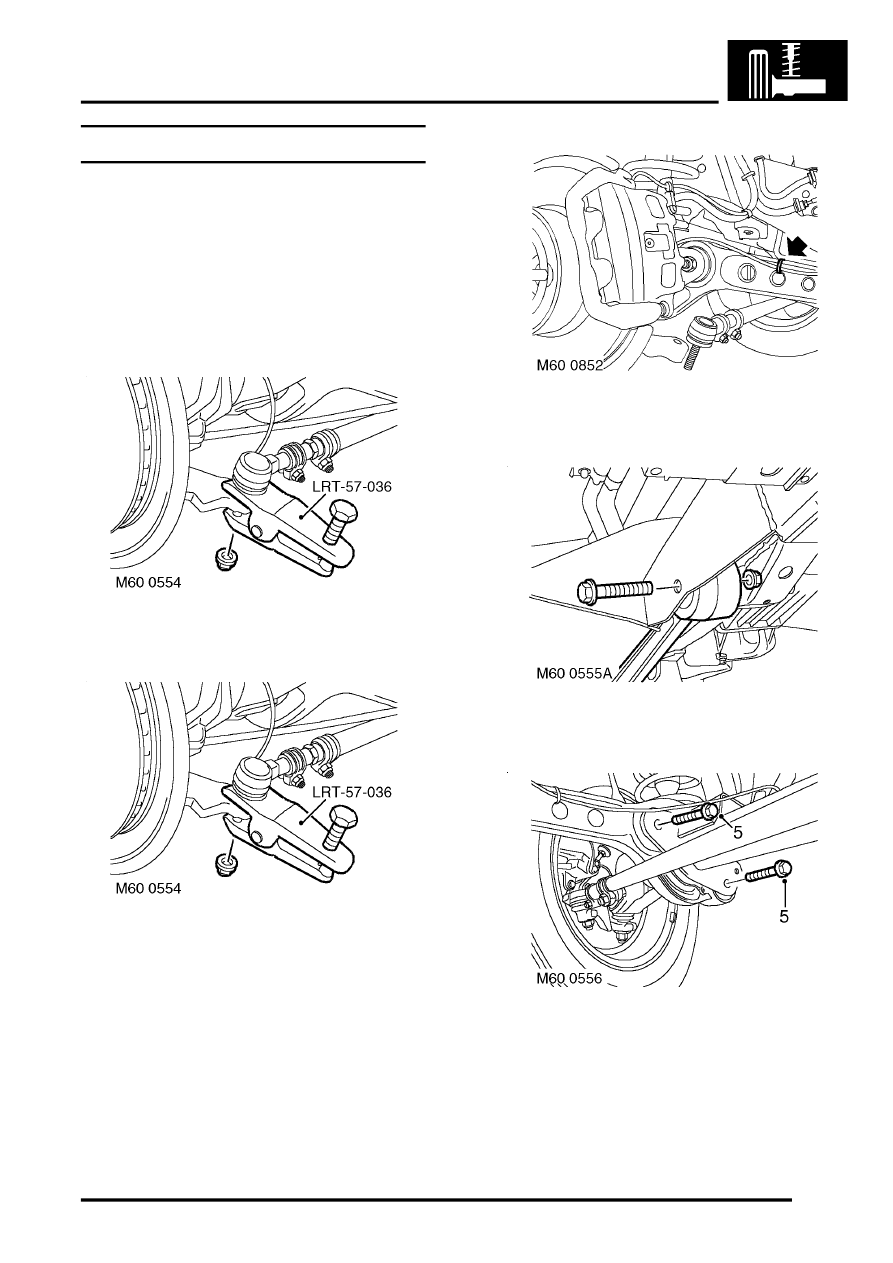

Discovery II
FRONT SUSPENSION
60-38
REPAIRS
10. Using LRT-60-011/1 and LRT-60-011/2 press
out bush from rear end of radius arm.
11. Using a suitable piece of tubing, press out
bushes from axle end of radius arm.
Refit
1. Clean and lubricate bush and radius arm
mating faces.
2. Using LRT-60-011/1,LRT-60-011/2 and LRT-
60-011/3, press bush into rear end of radius
arm.
3. Using a suitable piece of tubing press front
radius arm bush into radius arm.
4. Repeat above operation for remaining bush.
5. Position radius arm to vehicle and fit securing
nuts and bolts, do not tighten at this stage.
CAUTION: Nuts and bolts must be tightened
with weight of vehicle on suspension.
6. Fit cable tie to secure axle breather.
7. Fit track rod to steering knuckle and secure with
nut, tighten to 125 Nm (92 lbf.ft).
8. Fit road wheel and tighten nuts to 140 Nm (103
lbf.ft).
9. Remove stand(s) and lower vehicle.
10. Tighten radius arm nuts and bolts to 230 Nm
(170 lbf.ft).
