Discovery II
RESTRAINT SYSTEMS
75-26
REPAIRS
Air bag - fascia - passenger - deployment
- in vehicle
$% 76.74.17
These guidelines are written to aid authorised
personnel to carry out the safe disposal of air bag
modules when removed from the vehicle.
Deploy
It is imperative that before any work is
undertaken on the SRS system, the
appropriate information is read thoroughly.
1. Make the SRS system safe.
Supplementary Restraint System
Precautions.

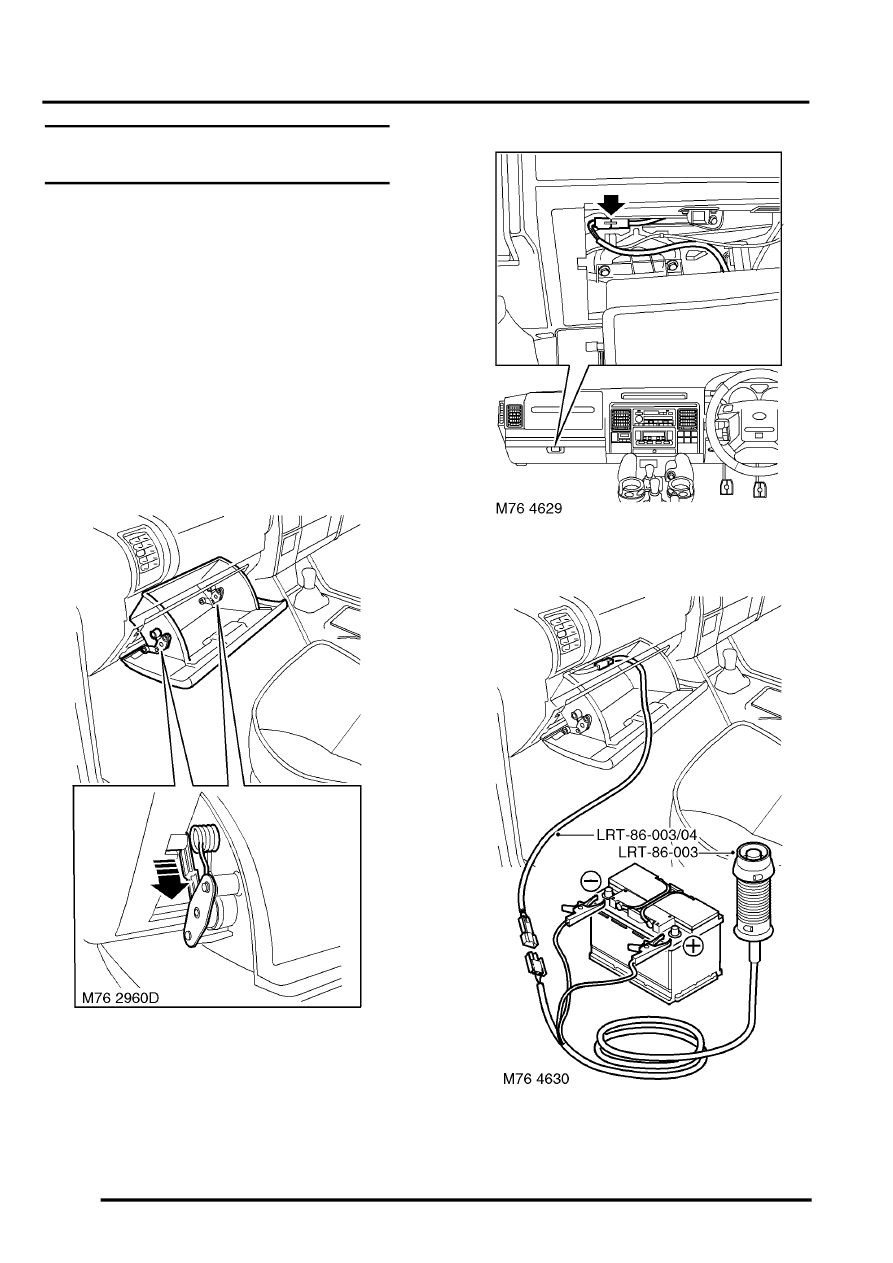

2. Release both guides supporting glove box to
fascia.
3. Lower glove box to gain access to air bag
module multiplug.
4. Disconnect multiplug from air bag module.
5. Check condition of deployment tool LRT-86-
003 and associated fly leads.
