Pre-tensioner - seat belt - front -
deployment - in vehicle
$% 76.73.77
These guidelines are written to aid authorised
personnel to carry out the safe disposal of air bag
modules when removed from the vehicle.
Deploy
It is imperative that before any work is
undertaken on the SRS system, the
appropriate information is read thoroughly.
1. Position front seat fully rearwards to access
seat belt pre-tensioner multiplug.
2. Make the SRS system safe.
Supplementary Restraint System
Precautions.
3. Disconnect multiplug from seat belt pre-
tensioner.

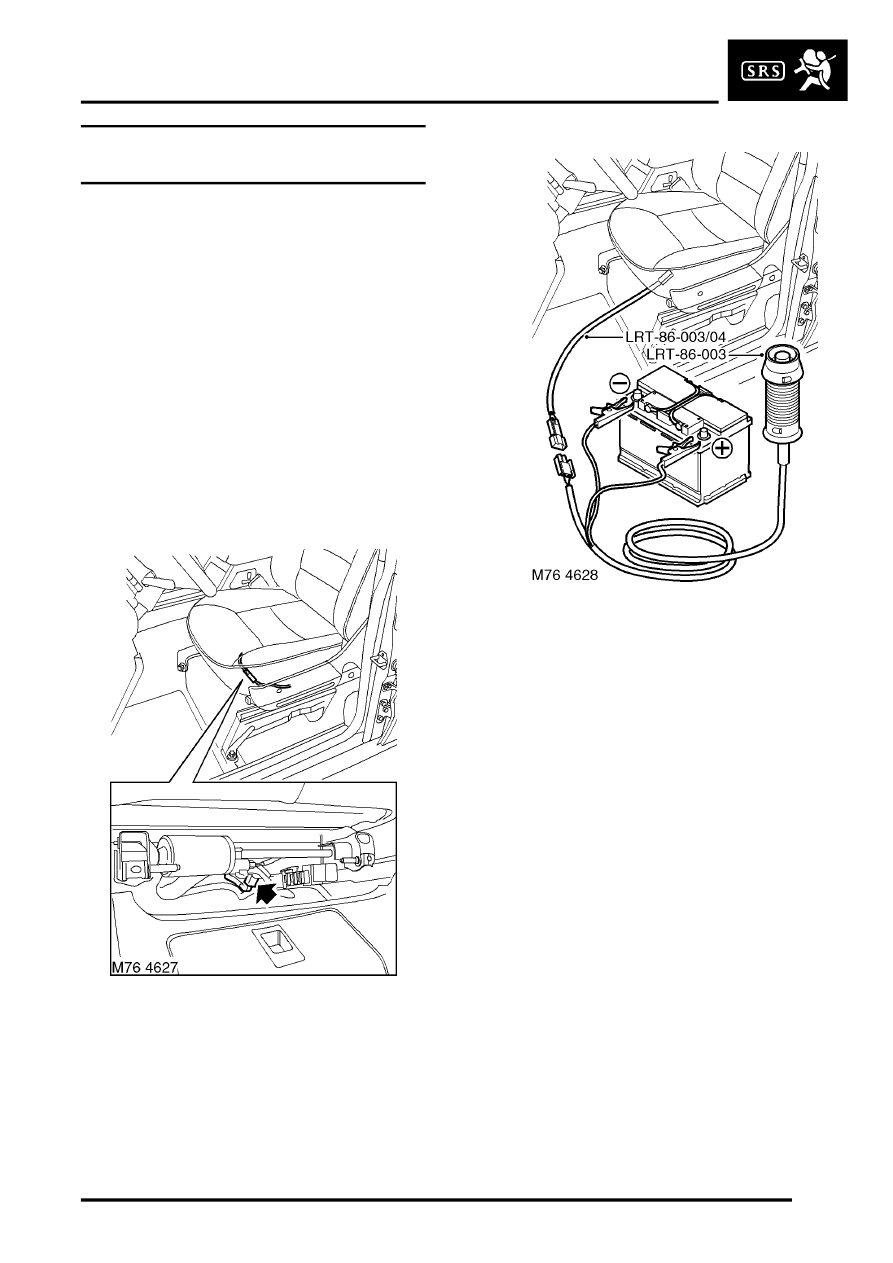

4. Check condition of deployment tool LRT-86-
003 and associated fly leads.
5. Connect deployment tool fly lead LRT-86-003/
04 to seat belt pre-tensioner.
6. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/04.
7. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the air bag
module.
8. Press deployment tool operating button to
deploy seat belt pre-tensioner.
9. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
air bag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the air bag module.
10. Disconnect deployment tool fly lead from seat
belt pre-tensioner.
11. Do not re-use or salvage any parts of the
SRS system.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.
