Discovery II
RESTRAINT SYSTEMS
75-24
REPAIRS
DCU
$% 76.74.06
WARNING: It is imperative that before any work
is undertaken on the SRS system the appropriate
information is read thoroughly.
WARNING: Always disconnect both battery leads
before beginning work on the SRS system.
Disconnect the negative battery lead first. Never
reverse connect the battery.
Remove
1. Remove the key from the starter switch.
Disconnect both battery leads, negative lead
first. Wait ten minutes before starting work.
2. Remove centre console.
l
REPAIRS, Console - centre - manual
models.
l
REPAIRS, Console - centre - automatic
models.

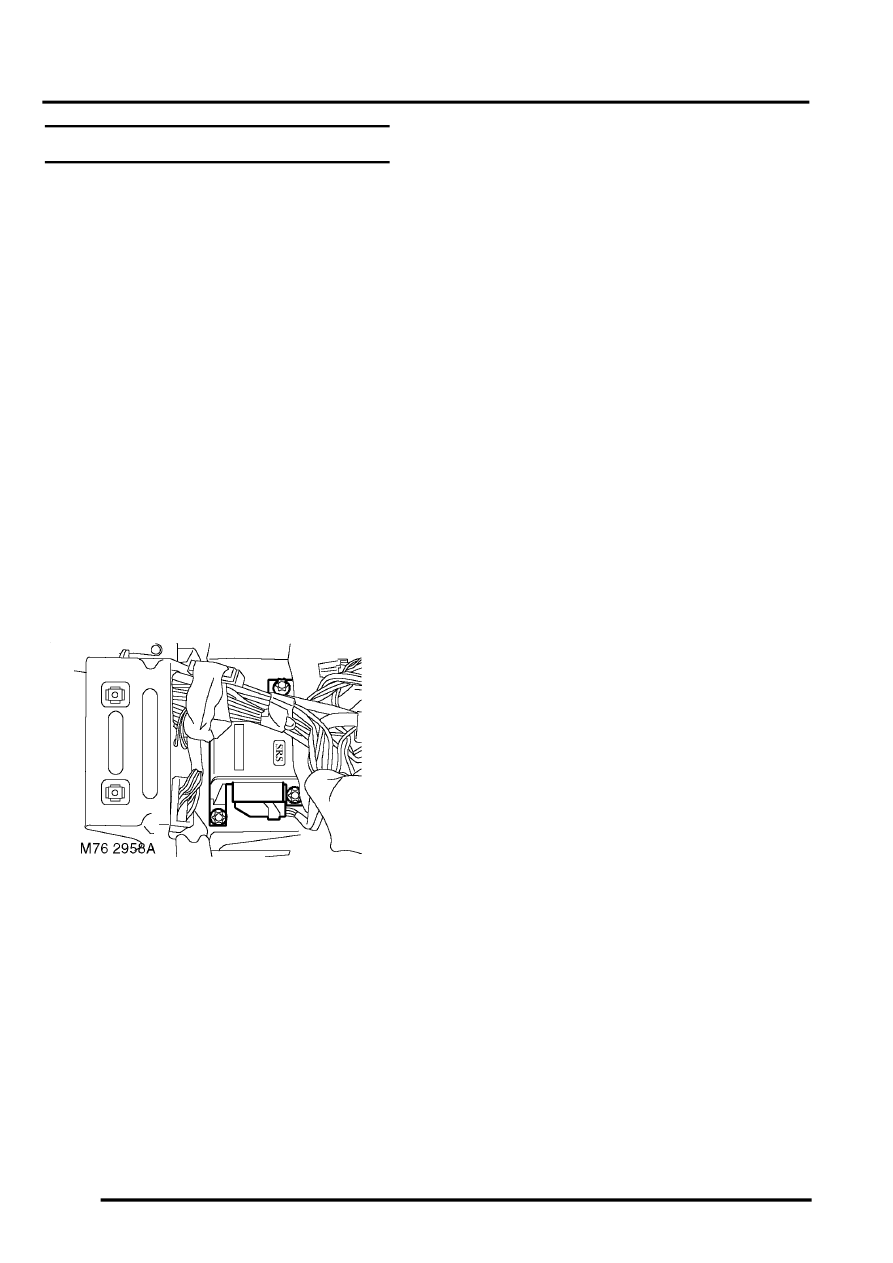

3. Disconnect multiplug from DCU.
4. Remove 3 Torx bolts securing DCU to body and
remove DCU.
CAUTION: The SRS diagnostic control unit
is a non-serviceable component and no
attempt should be made to repair or modify
the unit.
Refit
CAUTION: The SRS diagnostic control unit
is a shock sensitive device and must be
handled with extreme care.
1. Position DCU to body and connect multiplug.
2. Fit and tighten DCU Torx bolts to 10 Nm (7
lbf.ft).
3. Fit centre console.
l
REPAIRS, Console - centre - manual
models.
l
On automatic gearbox models:
REPAIRS, Console - centre - automatic
models.
4. Connect battery leads, earth lead last.
