Discovery II
SEATS
76-5-22 REPAIRS
Cover - cushion - rear seat
$% 78.40.04

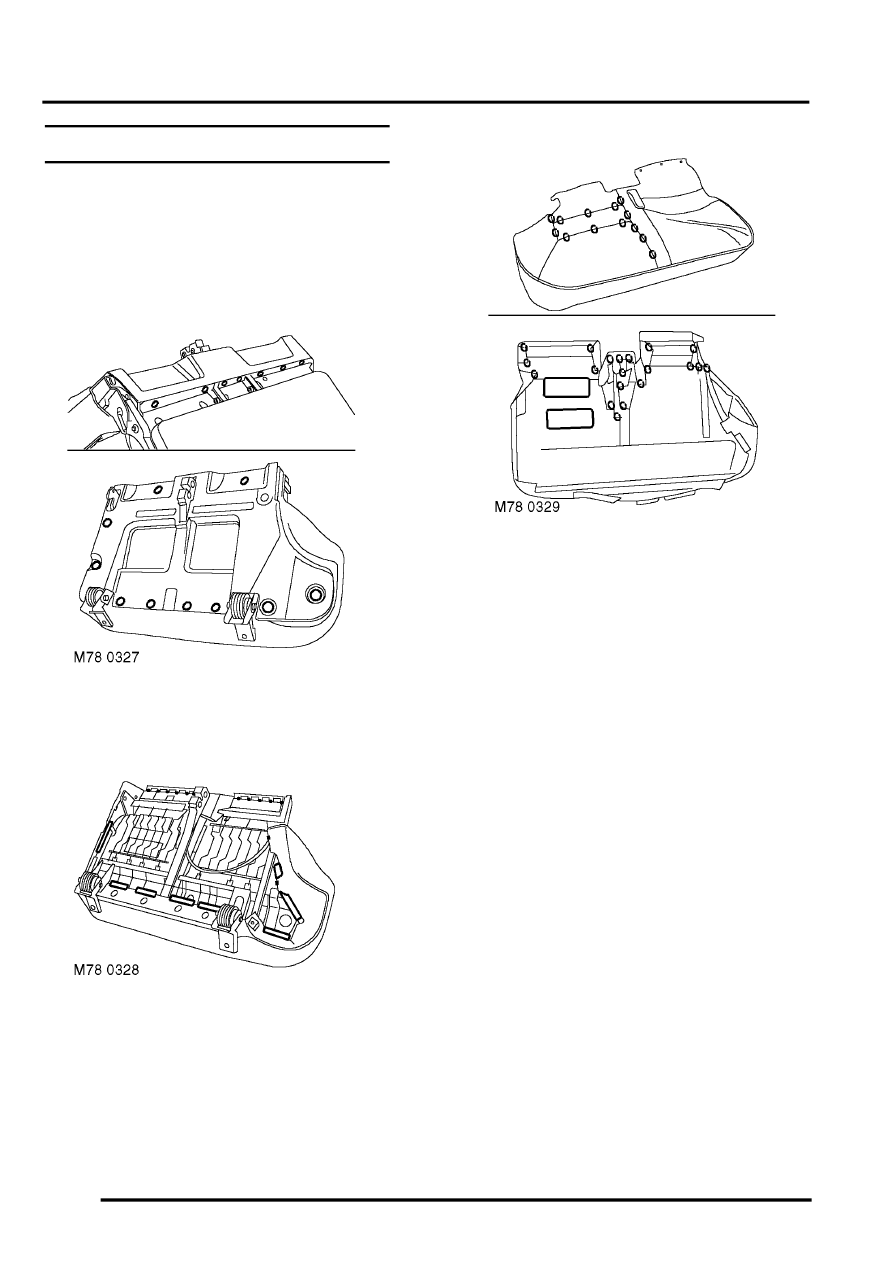

Remove
1. Remove rear seat.
2. Remove 17 studs securing cushion under tray
and remove tray.
3. Release cushion from 11 hooks at rear of
frame.
4. Remove 2 spring clips securing cushion.
5. Release 8 side clips securing cushion, release
and remove cushion assembly.
6. Push 2 retaining bars through pad.
7. Release cushion from sides of pad to access
hog rings.
8. Remove 33 hogs rings and remove cushion
from pad.
Refit
1. Position cushion to pad and secure with hog
rings.
2. Push retaining bars through pad and fit cover to
sides of pad.
3. Position cushion assembly to frame and
secure side clips.
4. Fit spring clips and secure to hooks at rear of
frame.
5. Position under tray and secure with studs.
6. Fit rear seat.
