Discovery II
TRANSFER BOX - LT230SE
41-34
REPAIRS

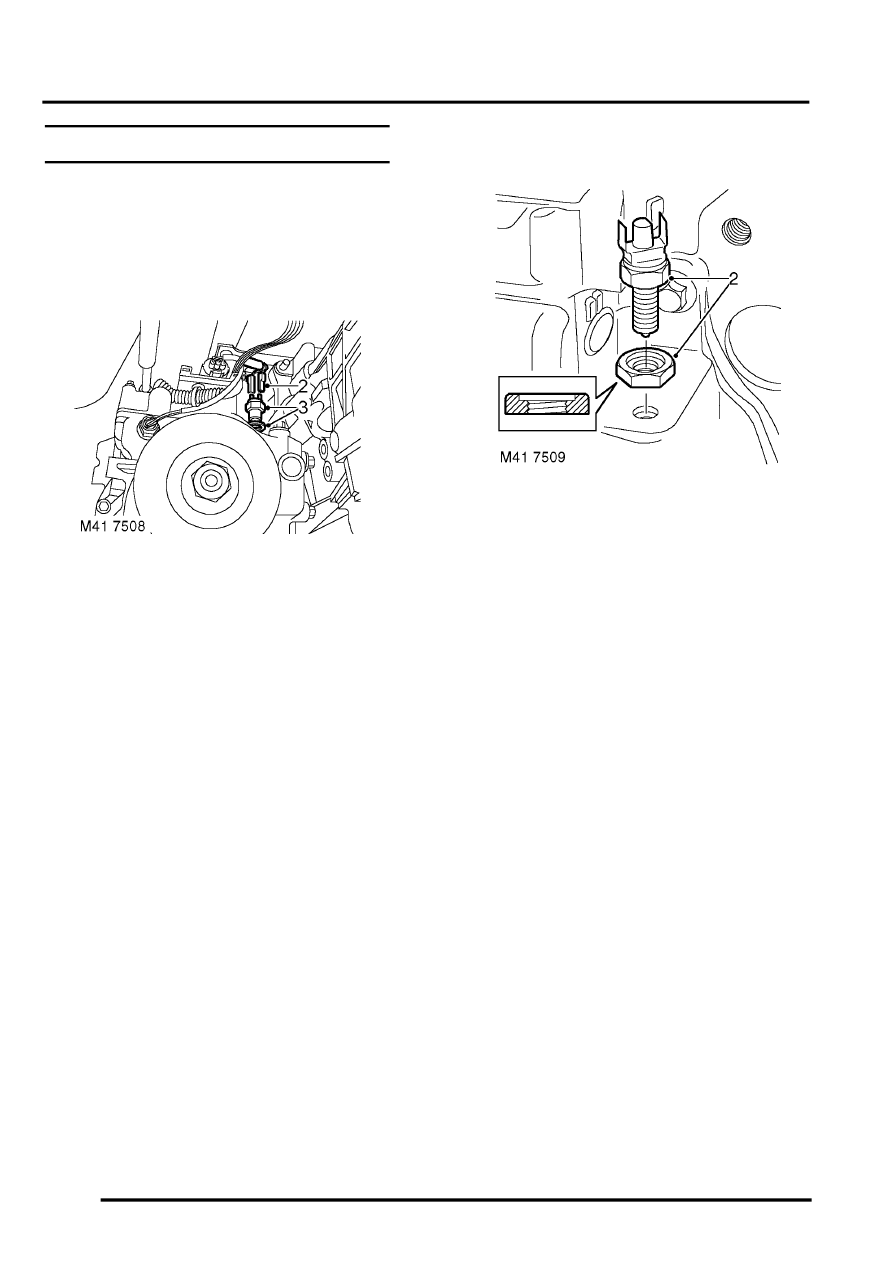

Switch - differential lock - Up to 03 MY
$% 41.20.34
Remove
1. Remove front propeller shaft.
2. Disconnect 2 Lucars from switch.
3. Remove switch and remove nut from switch.
Refit
1. Clean switch and gearbox face.
2. Fit nut to switch with counterbore positioned
towards switch head. The nut acts as a spacer
to ensure that switch setting is correct.
Always ensure that nut is fully tightened to
switch head, (no gap).
3. Apply sealant, Part No. STC 50552 to switch
thread.
4. Position switch into front output housing until
nut bottoms out on housing.
5. Tighten nut securing differential lock switch to
11 Nm (8 lbf.ft)
6. Connect Lucars to switch.
7. Fit front propeller shaft.
