The MAF sensor provides a signal which the ECM uses for engine load calculations.

The MAF sensor is a hot film type, and is located in the intake system between the air filter housing and the throttle body.

A closed-loop control circuit in the MAF sensor maintains a thick film resistor at a constant 200 °C (392 °F) above ambient temperature. The current required to maintain the temperature of the thick film resistor, against the cooling effect of the air flowing through the sensor, provides a precise, non-linear, measure of the air mass entering the engine.

The MAF sensor receives a battery voltage power supply and generates an output signal to the ECM, between 0 and 5 volts, which is proportional to the air mass drawn into the engine.

In the event of a MAF sensor signal failure, the following symptoms may be apparent: l During driving engine speed may dip before recovering. l Difficult starting. l Engine stalls after starting. l Delayed throttle response. l Reduced engine performance.

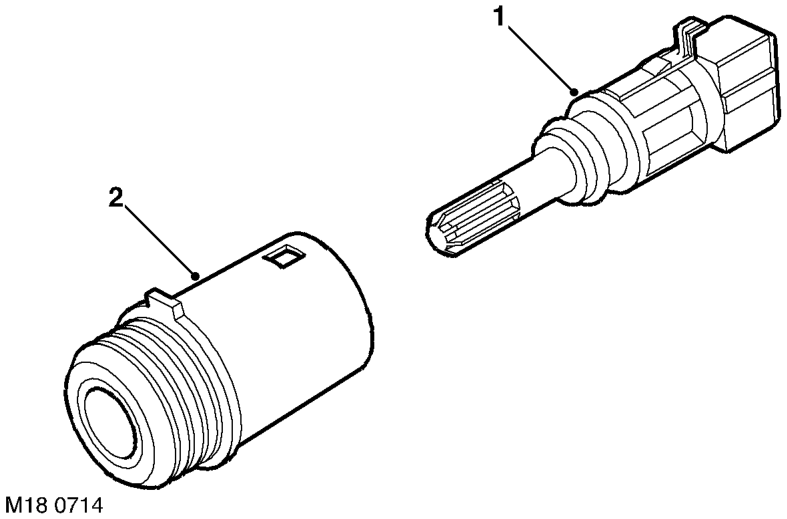

IAT Sensor

1 Sensor

2 Housing

The IAT sensor provides a signal that enables the ECM to adjust ignition timing and fuelling quantity according to the intake air temperature, thus ensuring optimum performance, driveability and emissions.

The IAT sensor is a Negative Temperature Coefficient (NTC) thermistor located in a plastic housing installed in the intake duct between the MAF sensor and the throttle body. The sensor is a push fit in the housing and sealed by an 'O' ring. A clip is integrated into the sensor to secure it in the housing.

If the input from the IAT sensor fails, the vehicle will continue to run. The ECM will substitute a default value using the information from the speed/load map to run the engine, but adaptive fuelling will be disabled.
