a Temperature Control (Heating and ventilation)
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › a Temperature Control
Heating and ventilationa Temperature Control

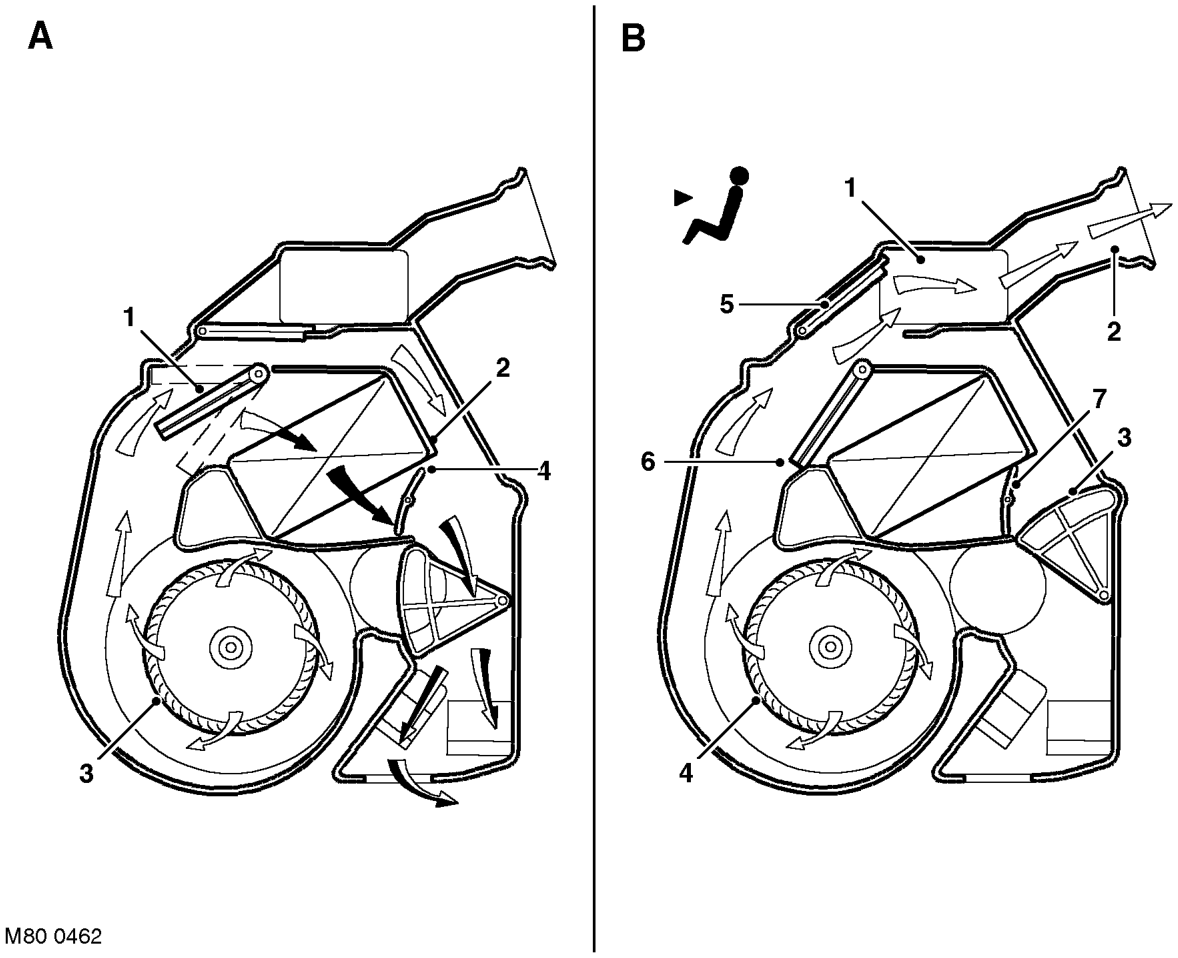

a Temperature Control
1 Temperature control flap (partially open) 2 Heater Matrix 3 Blower 4 Heater Matrix 'close off' flap (partially open)
b Face Level Distribution Control
1 Outer face level air outlet 2 Centre face level air outlet 3 Distribution main flap 4 Blower 5 Distribution fresh air flap 6 Temperature control flap 7 Heater matrix 'close-off' flap
