Heater Assembly Components (Heating and ventilation)
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › Heater Assembly Components
Heating and ventilationHeater Assembly Components

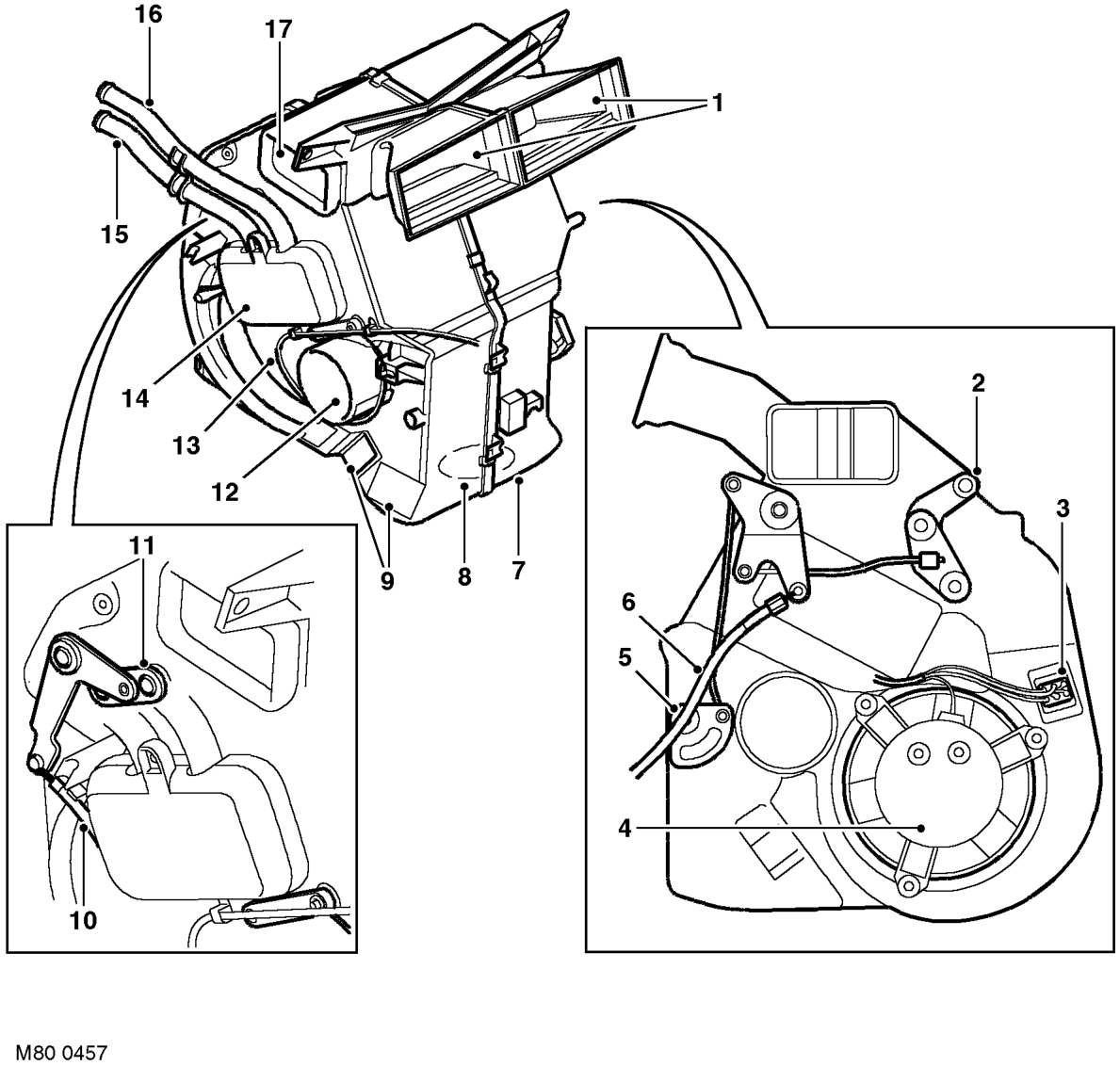

Heater Assembly Components
RHD shown, LHD similar
1 Centre face level air outlets 2 Fresh air flap lever 3 Resistor pack 4 Blower motor and impeller fan 5 Main distribution flap lever 6 Distribution control cable 7 Casing 8 Rear footwells air outlet 9 Front footwell air outlets
10 Blend flap control cable 11 Blend flap lever 12 Windscreen and side window air outlet 13 Heater matrix 'close off' flap and control cable 14 Heater matrix cover 15 Engine coolant feed 16 Engine coolant return 17 Outer face level air outlet
