Heating and ventilationFuel Burning Heater Component Layout

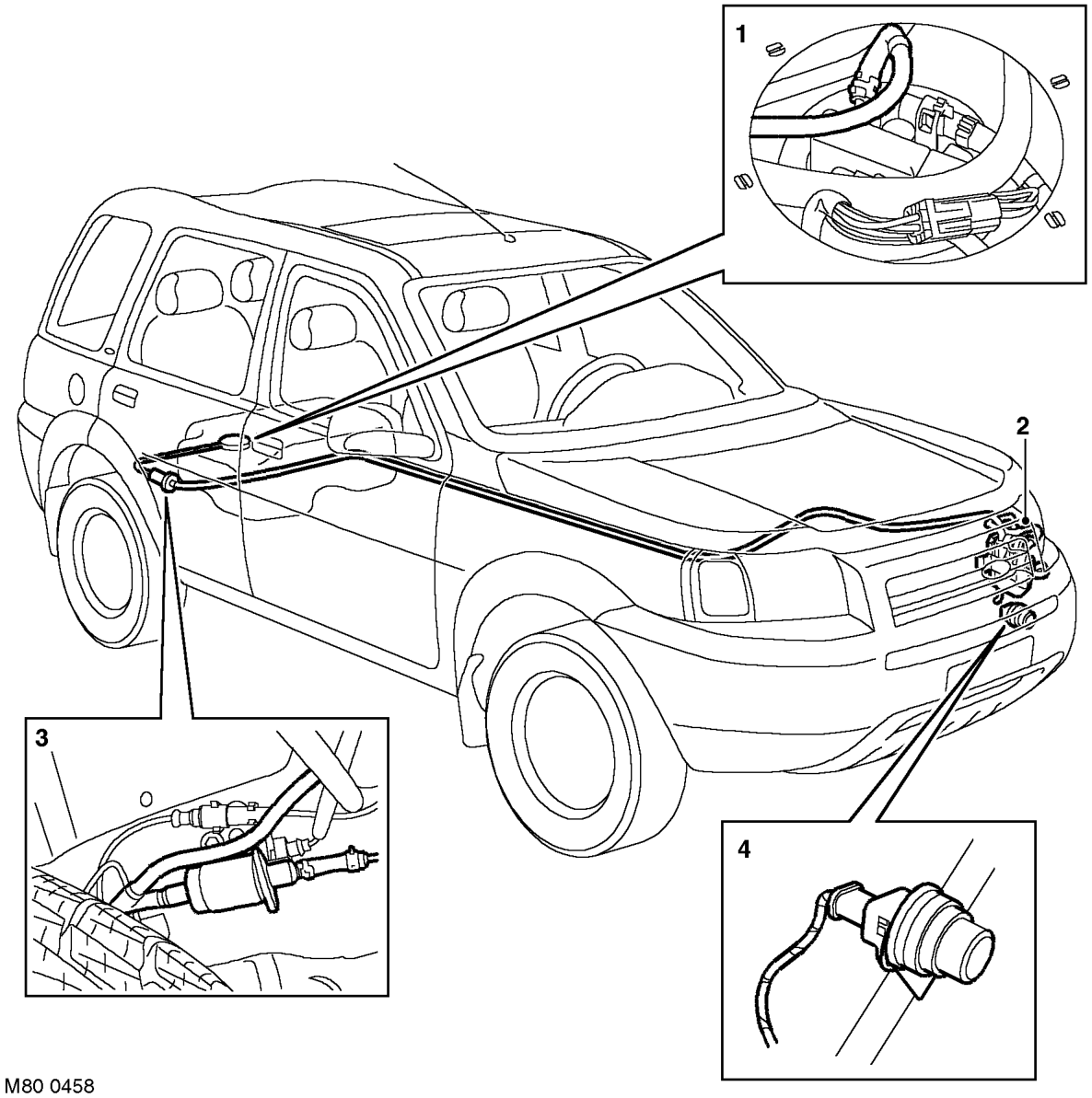

Fuel Burning Heater Component Layout
LH drive shown, RH drive similar
1 Fuel Burning Heater fuel line connection 2 Fuel Burning Heater unit
3 Fuel Burning Heater pump 4 Air temperature sensor
