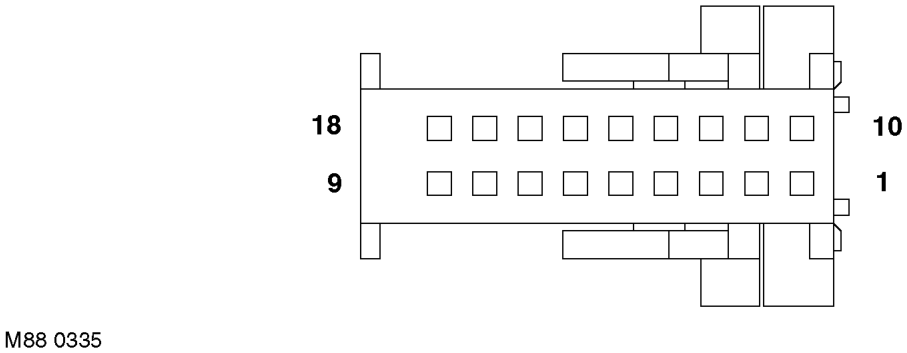

Connector C0233

The following table shows pin inputs/outputs for connector C0233.

Pin No.	Description	Input/Output
1	Door open signal	Input
2	Hazard warning lamps active signal	Input
3	Not used	-
4	Brake warning signal	Input
5	Panel illumination –	Output
6	Panel illumination +	Input
7	Earth	Input
8	Ignition switch position II (ignition) signal	Input
9	Ignition switch position III (crank) signal	Input
10	Ignition charge signal	Input
11	SRS warning signal	Input
12	Oil pressure low signal	Input
13	Air Conditioning request signal	Input
14	Reverse switch signal	Input
15	Alarm active signal	Input
16	LH direction indicator active signal	Input
17	Main beam active signal	Input
18	RH direction indicator active signal	Input
