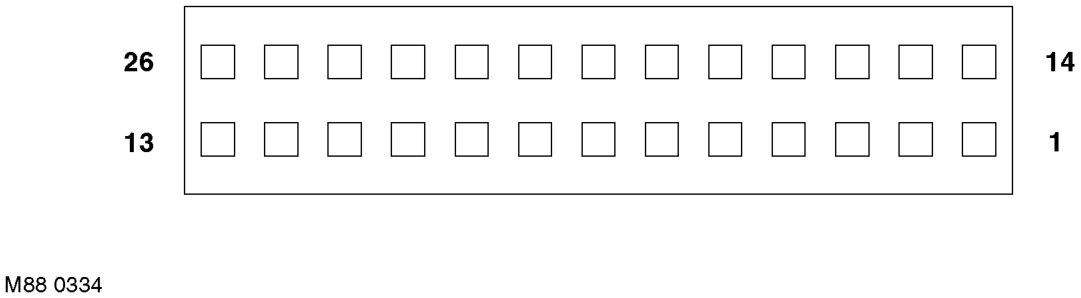

Connector C0230

The following table shows pin inputs/outputs for connector C0230.

Pin No.	Description	Input/Output
1	Seat belt warning signal	Input
2	Not used	-
3	Not used	-
4	Engine speed signal	Input (PWM)
5	Cruise active signal	Input (digital)
6	Not used	-
7	1st gear input (manual gearbox only)	Input (digital)
8	A/C pressure sensor (power supply) (diesel and NAS KV6 only)	Output
9	A/C pressure sensor signal (System pressure) (diesel and NAS KV6 only)	Input (analogue)
10	A/C pressure sensor earth (diesel and NAS KV6 only)	Output
11	Diagnostic ISO 9141 K Bus (serial)	Input/Output
12	CAN + (serial)	Input/Output
13	CAN + (serial)	Input/Output
14	Rear fog lamp active signal	Input
15	Trailer lamp failure signal	Input
16	Not used	-
17	Not used	-
18	Not used	-
19	Not used	-
20	A/C evaporator temperature signal (diesel and NAS KV6 only)	Input (analogue)
21	Fuel level sender signal	Input (analogue)
22	Not used	-
23	Permanent battery supply (13.4 V nominal)	Input
24	Earth	Input
25	CAN – (serial)	Input/Output
26	CAN – (serial)	Input/Output
