Land Rover Freelander Body Repair Manual (1998 on)06 · Panel repairs
06 · General

ELECTRICAL, Repairs.

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Repairs › ELECTRICAL, Repairs.
Panel repairsELECTRICAL, Repairs.

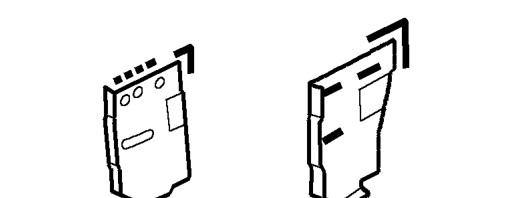

Diagram

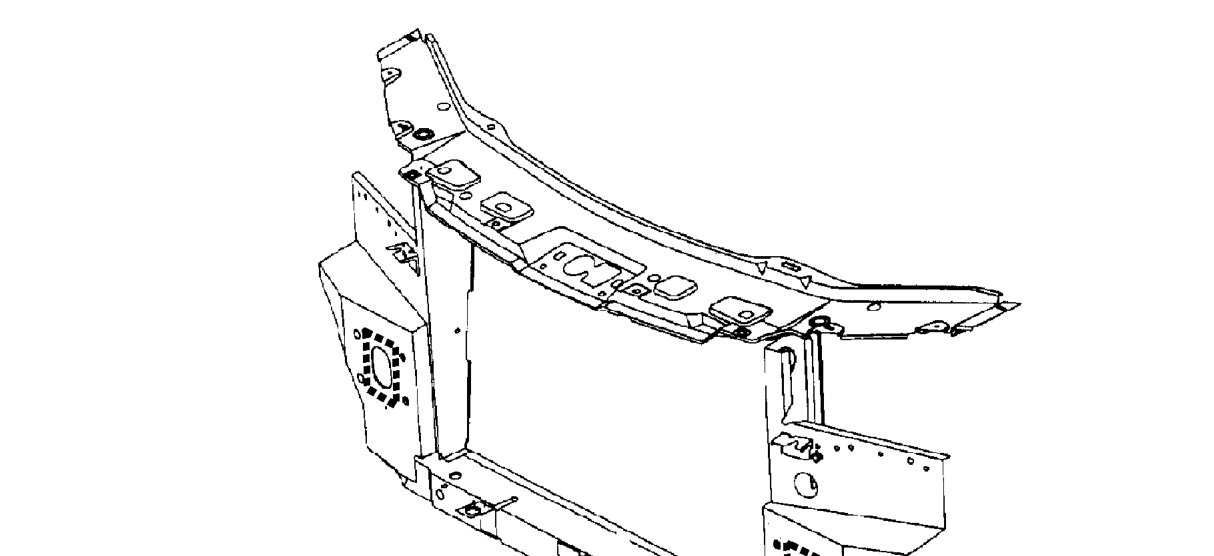

Diagram

Refit

  1. Fit bonnet stay.
  2. Fit bonnet lock.
  3. Fit windscreen washer reservoir. See WIPERS & WASHERS, Repairs.
  4. Fit horn. See ELECTRICAL, Repairs.
  5. Fit air intake hose.
  6. Fit battery. Do not connect earth lead. See ELECTRICAL, Repairs.
  7. Fit bumper valance LH and RH attachment brackets.
  8. Fit LH and RH engine bay shields.
  9. Fit LH and RH headlamps. See Secure headlamps

ELECTRICAL, Repairs.

wiring.

  1. Fit PAS fluid cooler. See STEERING, Repairs.
  2. Fit radiator. See COOLING SYSTEM, Repairs.
  3. Fit front bumper armature.
  4. Fit front bumper valance. See BODY, Exterior fittings.
  5. Connect all ECUs.
  6. Connect alternator. See ELECTRICAL, Repairs.
  7. Connect battery earth lead.
