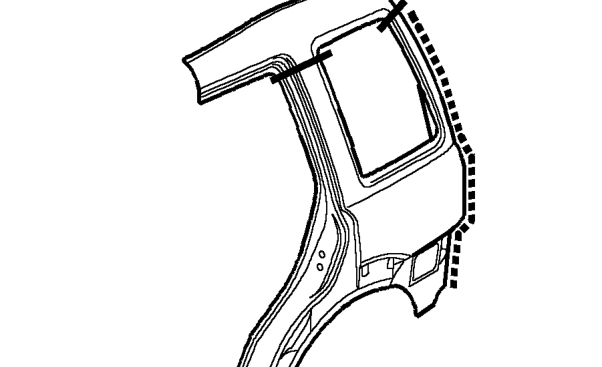

For LH side

Refit

For LH side

1. Fit tail door striker to ’E’ post.

For RH side

2. Fit fuel tank. See FUEL DELIVERY SYSTEM, Repairs.
3. Fit fuel filler neck. See FUEL DELIVERY SYSTEM, Repairs.
4. Fit tail door. See BODY, Doors.

For both sides

5. Secure vehicle harness to rear quarter.
6. Fit rear damper. See REAR SUSPENSION, Repairs.
7. Fit rear body side glass. See BODY, Screens.
8. Fit headlining. See BODY, Interior trim components.
9. Fit rear seat. See BODY, Seats and seat belts.
10. Fit loadspace carpet. See BODY, Interior trim components.
11. Fit rear side seat belt. See RESTRAINT SYSTEMS, Repairs.
12. Fit rear quarter upper casing. See BODY, Interior trim components.
13. Fit rear quarter lower casing. See BODY, Interior trim components.
14. Fit tail lamp. See ELECTRICAL, Repairs.
15. Fit roof panel finisher. See BODY, Exterior fittings.
16. Fit tail door aperture seal.
17. Fit tail door glass side finisher. See BODY, Doors.
18. Fit tail door glass upper finisher. See BODY, Doors.
19. Secure carpet to inner sill and rear heelboard.
20. Fit rear door aperture seal.
21. Fit treadplate to rear door aperture.
22. Fit rear door striker to ’D’ post.
23. Fit rear wheel arch liner.
24. Fit rear bumper valance. See BODY, Exterior fittings.
25. Fit sill lower finisher. See BODY, Exterior fittings.
26. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
27. Connect all ECUs.
28. Connect alternator. See ELECTRICAL, Repairs.
29. Connect battery earth lead.
