Land Rover Freelander Body Repair Manual (1998 on)06 · Panel repairs
06 · General

For driver’s side

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Repairs › For driver’s side
Panel repairsFor driver’s side

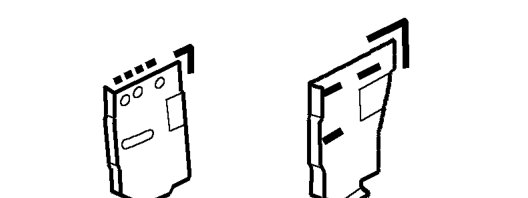

Diagram

Refit

  1. Fit insulation pads to engine bulkhead.
  2. Position front carpet and fit treadplate to front door aperture.

For driver’s side

  1. Fit clutch pedal box. See CLUTCH, Repairs.
  2. Fit brake pedal box and brake servo. See BRAKES, Repairs.
  3. Fit passenger compartment fuse box.

For LH side

  1. Fit horn. See ELECTRICAL, Repairs.
  2. Fit air intake hose.
  3. Fit battery. Do not connect battery earth lead. See ELECTRICAL, Repairs.
  4. Fit LH engine mounting to body.
  5. Fit front bumper LH support bracket.

For RH side

  1. Fit windscreen washer reservoir. See WIPERS & WASHERS, Repairs.
  2. Fit RH engine mounting to body.
  3. Fit front bumper RH support bracket.

For both sides

  1. Fit fascia. See BODY, Interior trim components.
  2. Fit PAS rack. See STEERING, Repairs.
  3. Fit engine and gearbox. See ENGINE, Repairs.
  4. Fit front suspension rear beam.
  5. Fit front wheel arch liner. See BODY, Exterior fittings.
  6. Fit engine bay shield.
  7. Fit headlamp. See ELECTRICAL, Repairs. Secure headlamp wiring.
  8. Fit PAS fluid cooler. See STEERING, Repairs.
  9. Fit radiator. See COOLING SYSTEM, Repairs.
  10. Fit front bumper armature.
  11. Fit front bumper valance. See BODY, Exterior fittings.
  12. Fit underbelly panel. See BODY, Exterior fittings.
  13. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  14. Connect all ECUs.
  15. Connect battery earth lead.
