L322 Range Rover Service Procedures
AIR CONDITIONING
82-4
REPAIRS

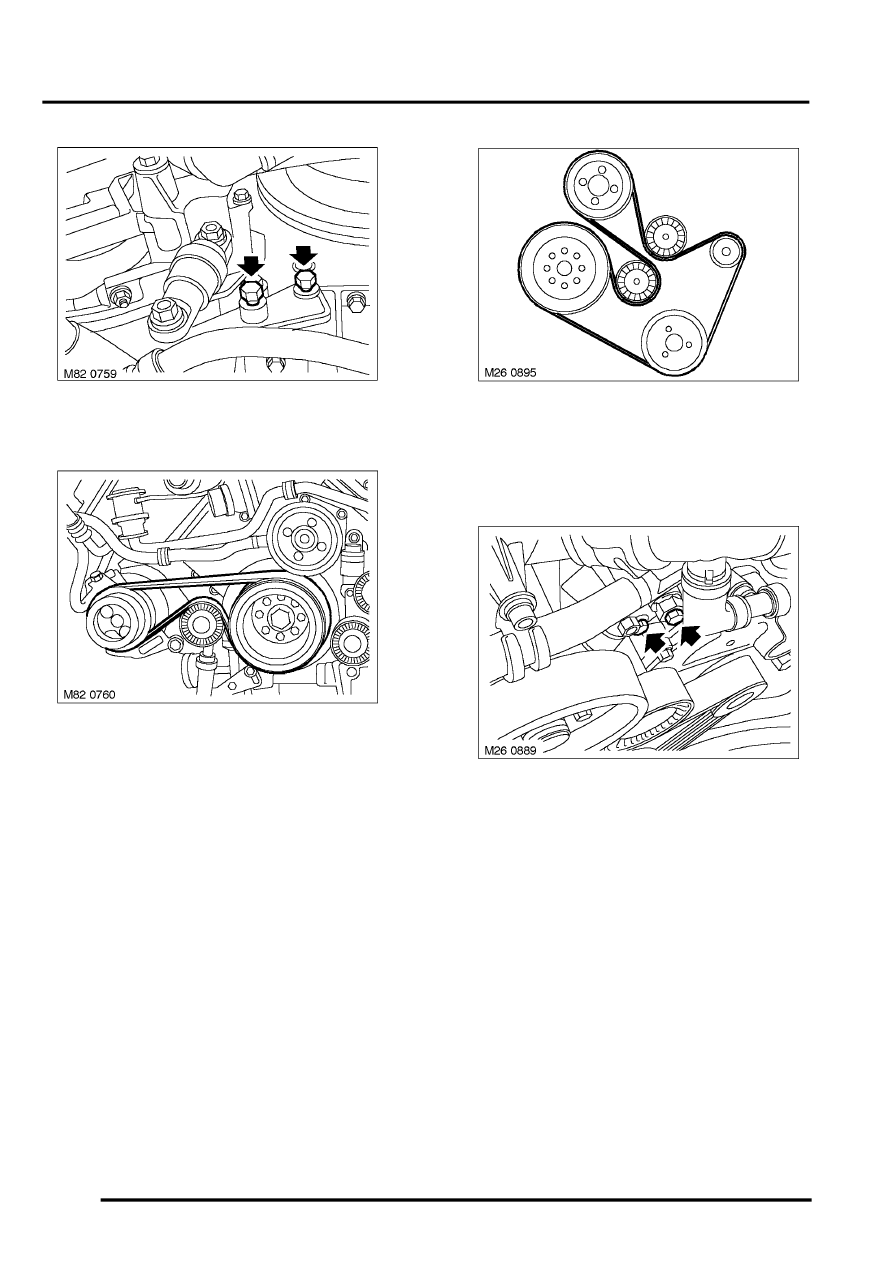

8. Loosen 2 bolts securing compressor drive belt
tensioner.
9. Release compressor drive belt from tensioner
pulley.
10. Remove compressor drive belt from crankshaft
pulley and compressor pulley.
Refit
1. Ensure drive belt pulleys are clean and damage
free.
2. Fit compressor drive belt to compressor pulley
and crankshaft pulley.
NOTE: Make sure compressor drive belt is fully
seated in pulley grooves.
3. Fit compressor drive belt to tensioner.
4. Rotate tensioner to fully tension compressor
drive belt.
5. Tighten 2 bolts securing compressor drive belt
tensioner to 25 Nm (18 lbf.ft).
6. Fit ancillary drive belt to all pulleys except
tensioner pulley.
7. Fit ancillary drive belt to tensioner pulley.
Ensure ancillary drive belt is aligned to all
pulleys.
8. Rotate tensioner to fully tension ancillary drive
belt.
9. Tighten tensioner bolts to 30 Nm (22 lbf.ft).
10. Fit undertray.
11. Connect battery earth lead.
