L322 Range Rover Service Procedures
COOLING SYSTEM - V8
REPAIRS
26-2-3
REPAIRS

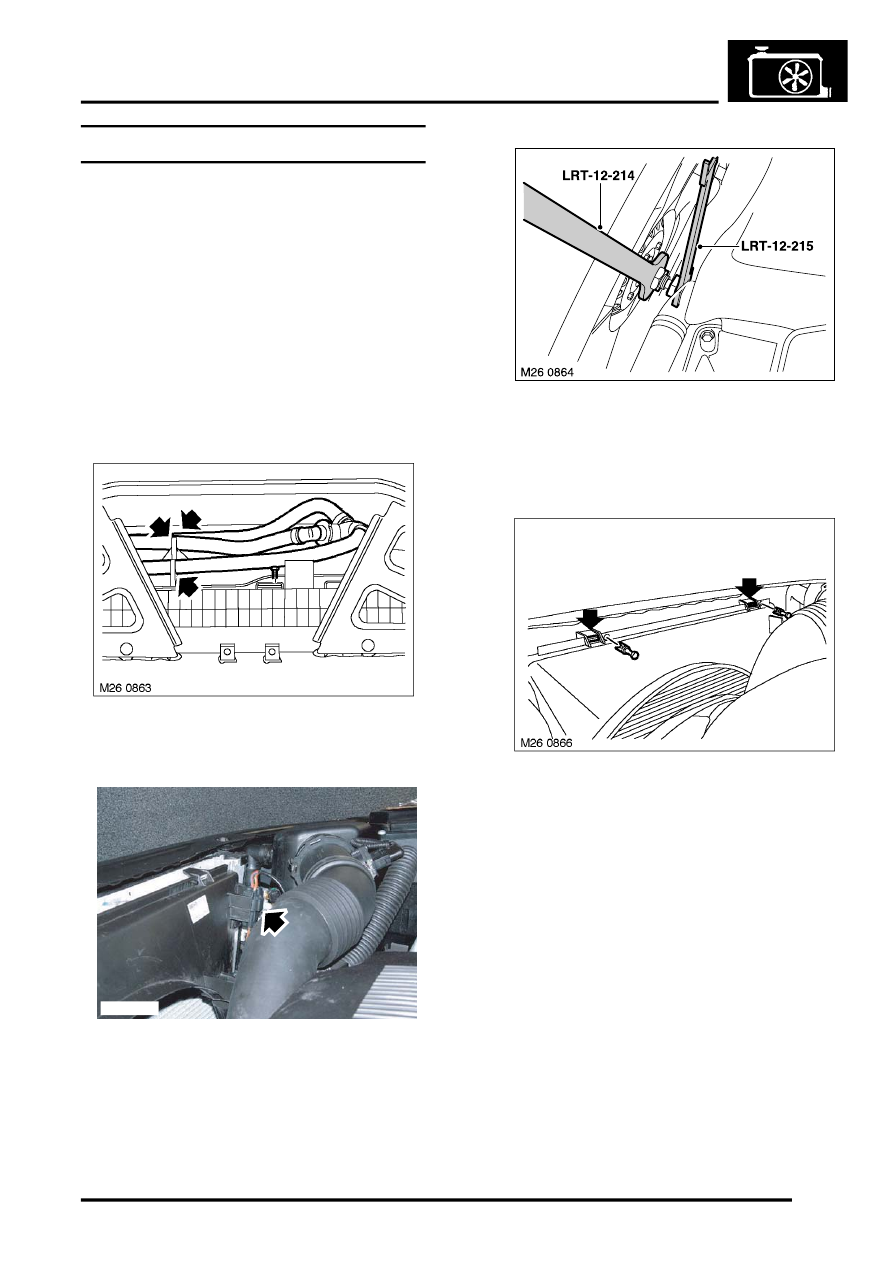

Coupling unit - viscous fan
$% 26.25.19
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove undertray.
4. Release 3 coolant hoses from clips on fan cowl.
Remove screw securing fan cowl to radiator.
5. Disconnect harness multiplug and release
cooling fan multiplug from mounting.
6. Use LRT-12-214 and LRT-12-215 to loosen
viscous coupling lock nut and remove fan
assembly from coolant pump.
NOTE: Thread is left handed.
7. Remove scrivets securing fan cowl.
CAUTION: The radiator matrix is a fragile
component, to prevent damage do not allow
the fan or fan cowl to contact the radiator.
M26 0865
