L322 Range Rover Service Procedures
COOLING SYSTEM - V8
REPAIRS
26-2-7
Gasket - coolant gallery sealing plate
$% 26.35.40
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove coolant pump to coolant manifold
Pipe(s) - coolant pump to coolant manifold.

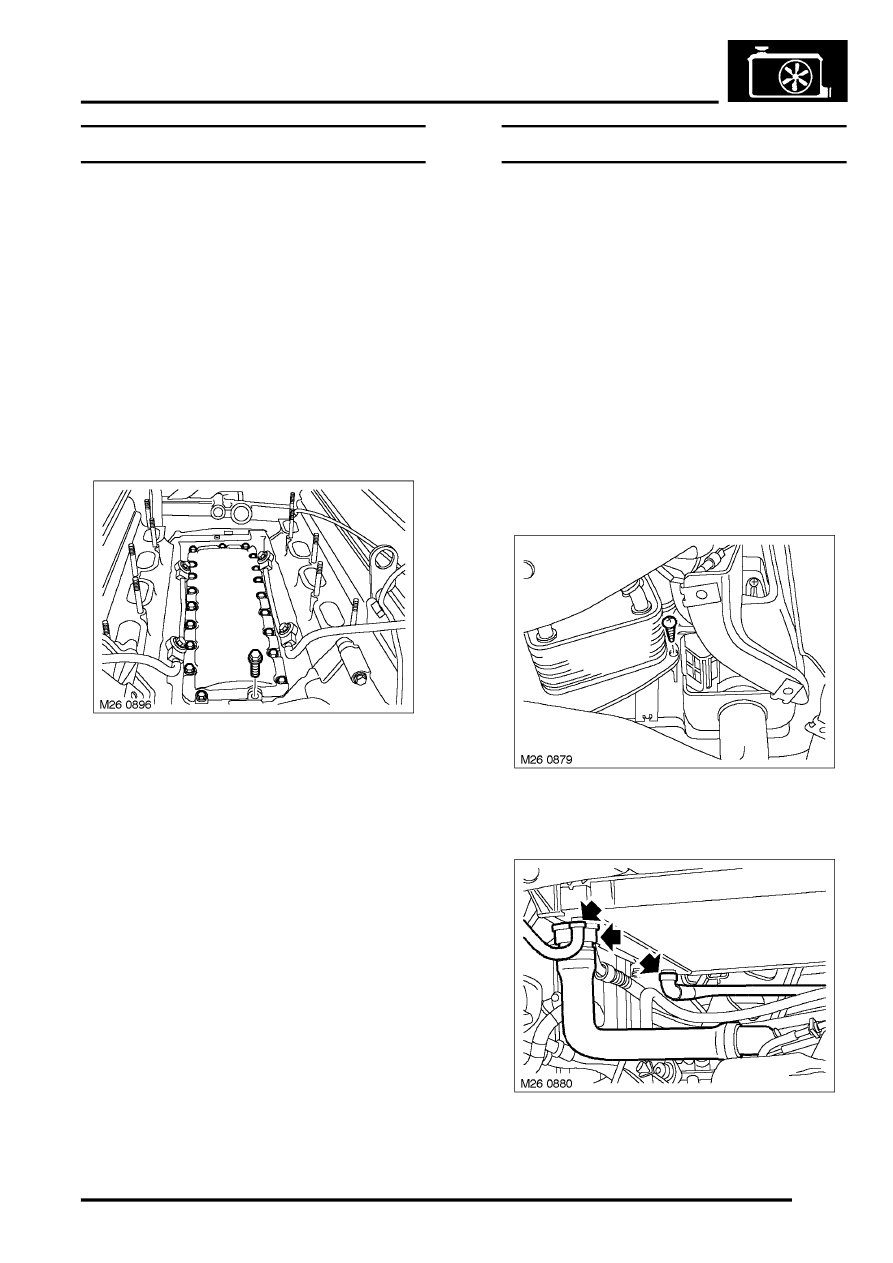

4. Remove 20 bolts securing coolant gallery
sealing plate and remove the sealing plate.
5. Discard gasket from coolant gallery sealing
plate and cylinder block.
Refit
1. Clean coolant gallery sealing plate and cylinder
block mating faces.
2. Fit new gasket to coolant gallery sealing plate.
3. Fit and secure coolant gallery sealing plate to
cylinder block, tighten bolts to 10 Nm (7 lbf.ft).
4. Fit coolant pump to coolant manifold pipes.
Pipe(s) - coolant pump to coolant manifold.
5. Connect battery earth lead.
Radiator
$% 26.40.01
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.
2. Position vehicle on lift.
3. Drain cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
4. Remove fan cowl.
5. Remove screw and release gearbox cooler
manifold from radiator.
6. Release hose clips and disconnect top hose,
bottom hose and expansion tank hose from
radiator.
