L322 Range Rover Service Procedures
COOLING SYSTEM - V8
REPAIRS
26-2-9

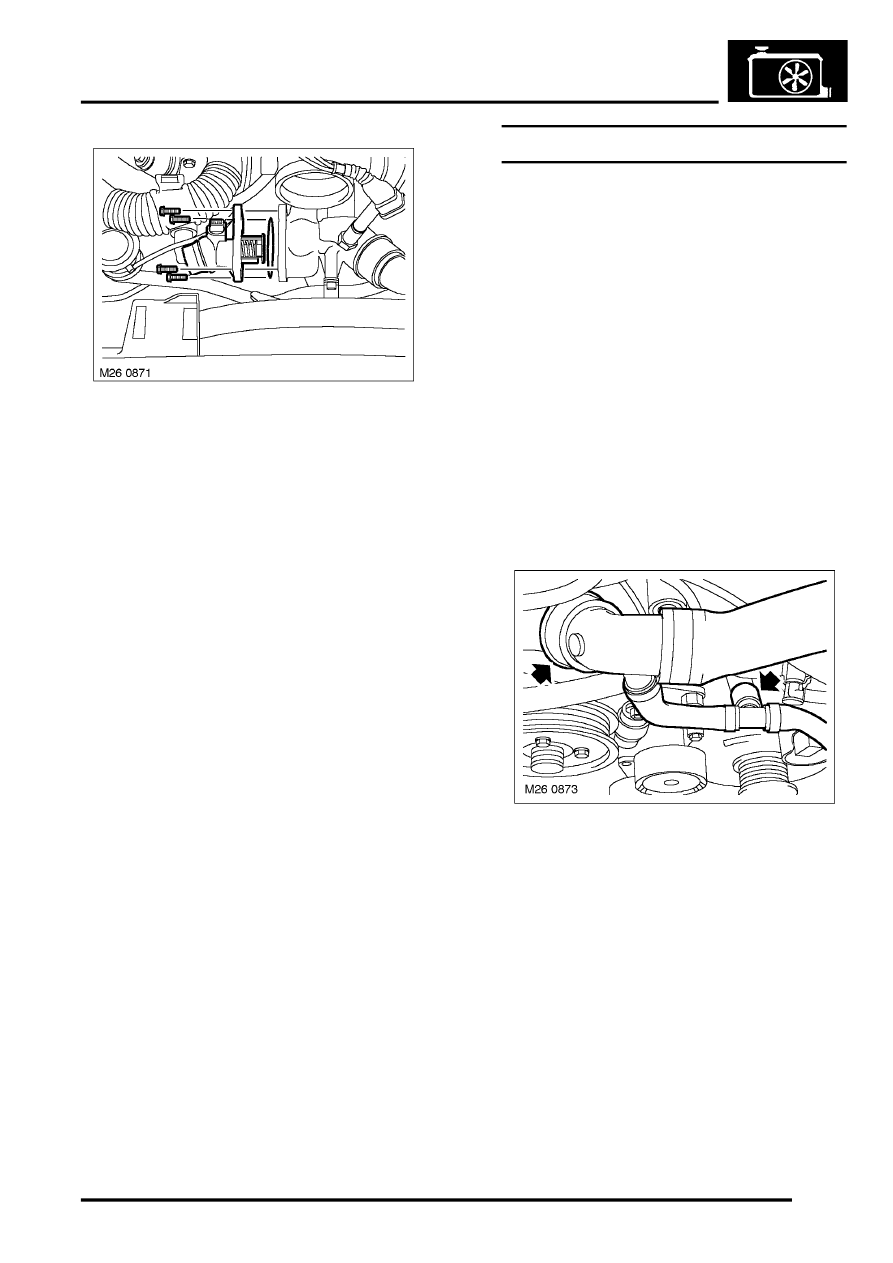

7. Remove 4 bolts and remove thermostat
housing from coolant pump. Discard seal.
Refit
1. Clean mating face of thermostat housing and
coolant pump.
2. Fit new seal to thermostat housing.
3. Fit thermostat housing and tighten bolts to 10
Nm (7 lbf.ft).
4. Connect radiator bottom hose to thermostat
housing and secure with clip.
5. Connect multiplug to thermostat heater.
6. Connect air intake hose.
V8, REPAIRS, Hose - air flow meter to
throttle body.
7. Connect battery earth lead.
8. Fill cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
Gasket - coolant pump
$% 26.50.02
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove thermostat.
4. Remove viscous fan.
5. Remove ancillary drive belt.
REPAIRS, Ancillary drive belt - V8.
6. Release clips and disconnect radiator top hose
from coolant pump and alternator.
