L322 Range Rover Service Procedures
HARNESSES
REPAIRS
86-8-5

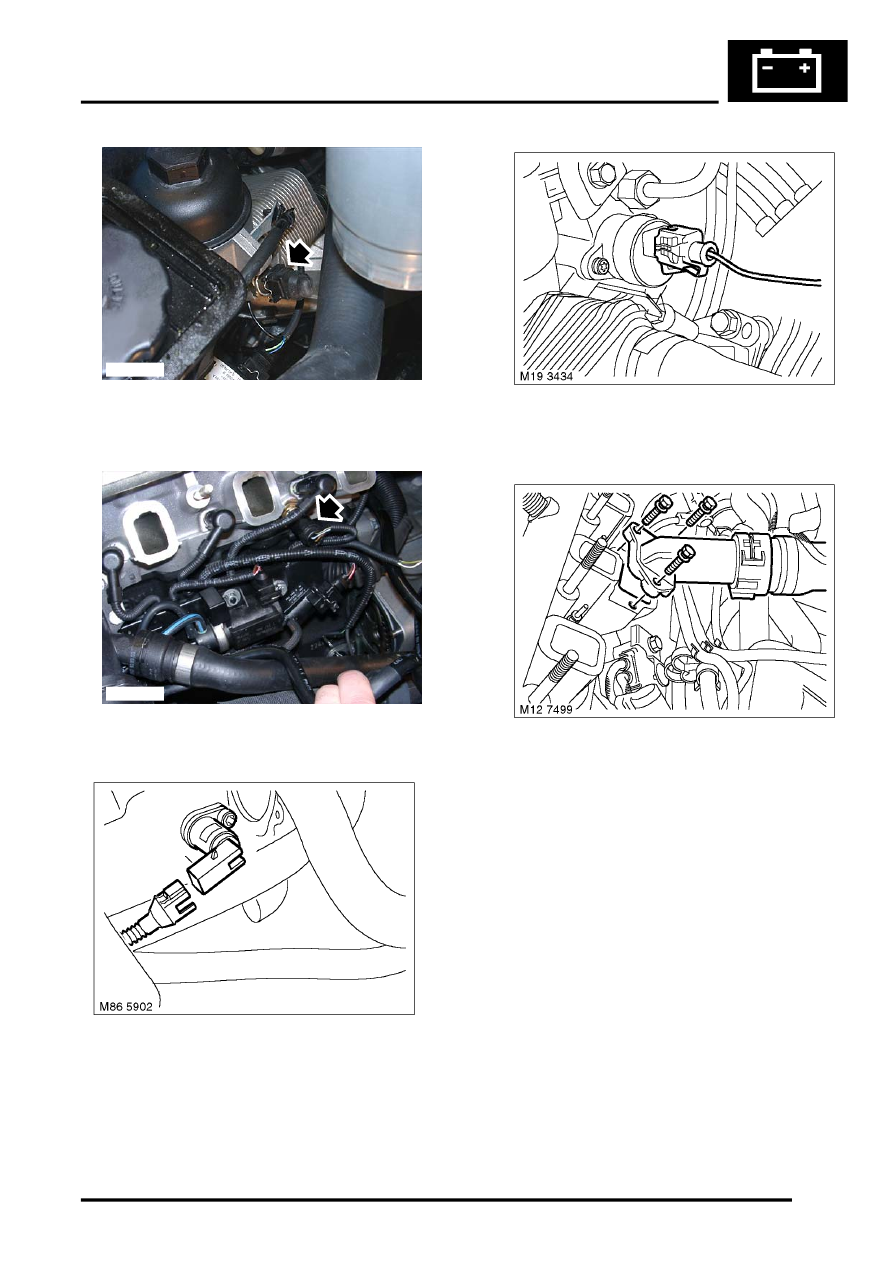

23. Disconnect multiplug from engine oil
temperature sensor.
24. Disconnect multiplug from ECT sensor.
25. Disconnect multiplug from CKP sensor.
26. Disconnect multiplug from back of injector
pump.
27. Remove 3 bolts and move coolant hose
adaptor from cylinder head. Discard seal.
28. Remove 2 bolts securing harness.
29. Raise vehicle on lift.
30. Disconnect gearbox multiplug and release
harness from 3 retaining clips.
31. Remove bolt and spacer from 'P' clip securing
harness at rear of engine.
32. Release harness from 3 retaining clips on RH
side of engine.
M12 7454
M18 0725
