HARNESSES
REPAIRS
86-8-9

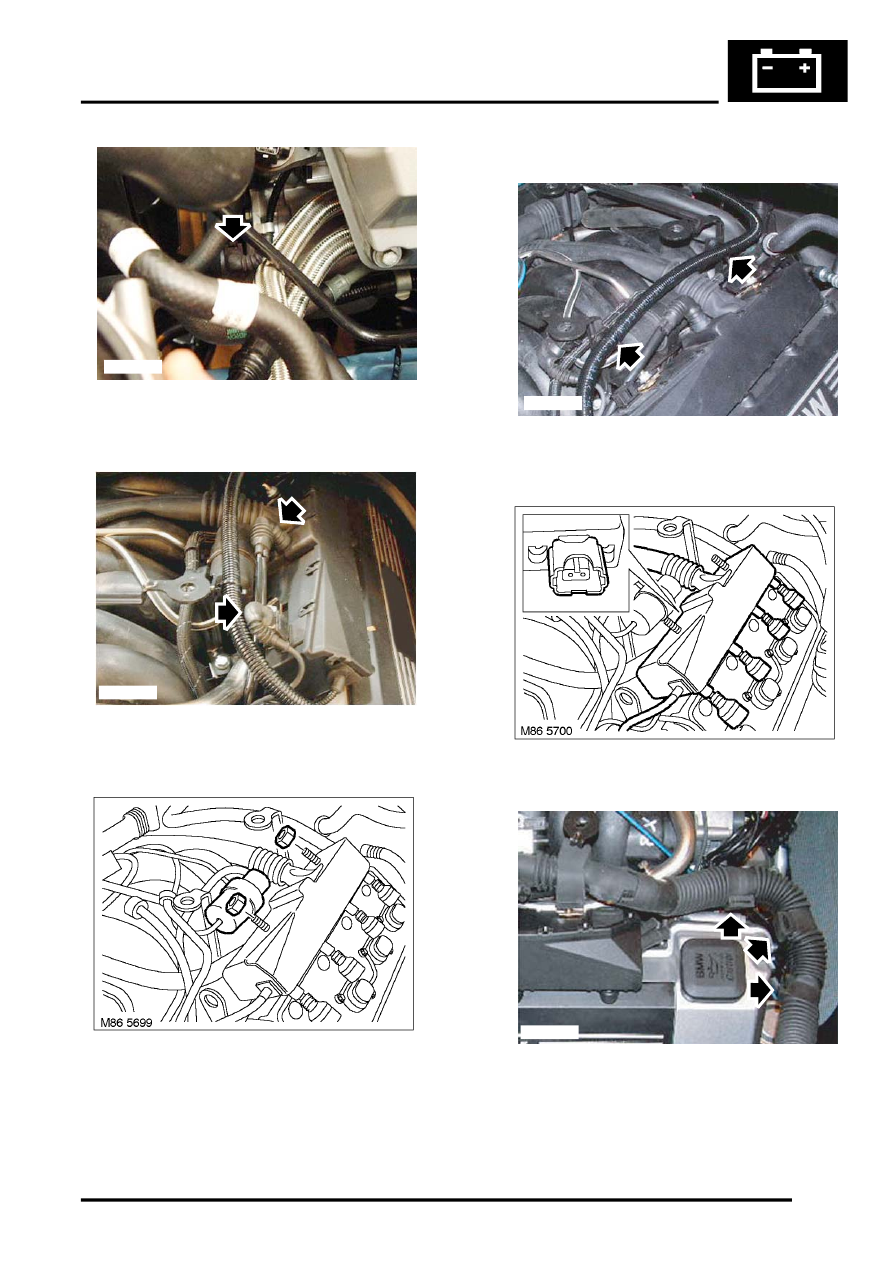

19. Disconnect multiplug from alternator.
20. Release alternator harness from 4 clips.
21. Disconnect multiplugs from KS and CMP
sensor.
22. Remove 2 nuts securing fuel injector harness to
fuel rail.
23. Release vacuum reservoir and mounting
bracket from LH fuel injector harness securing
stud.
24. Remove fuel hose and mounting bracket from
LH fuel injector harness securing stud.
25. Release alternator harness from 2 clips on
engine cover mounting brackets.
26. Disconnect multiplugs from fuel injectors.
27. Release engine harness from clips and move
clear of camshaft cover.
M86 5695
M86 5696
M12 7676
M12 7680
