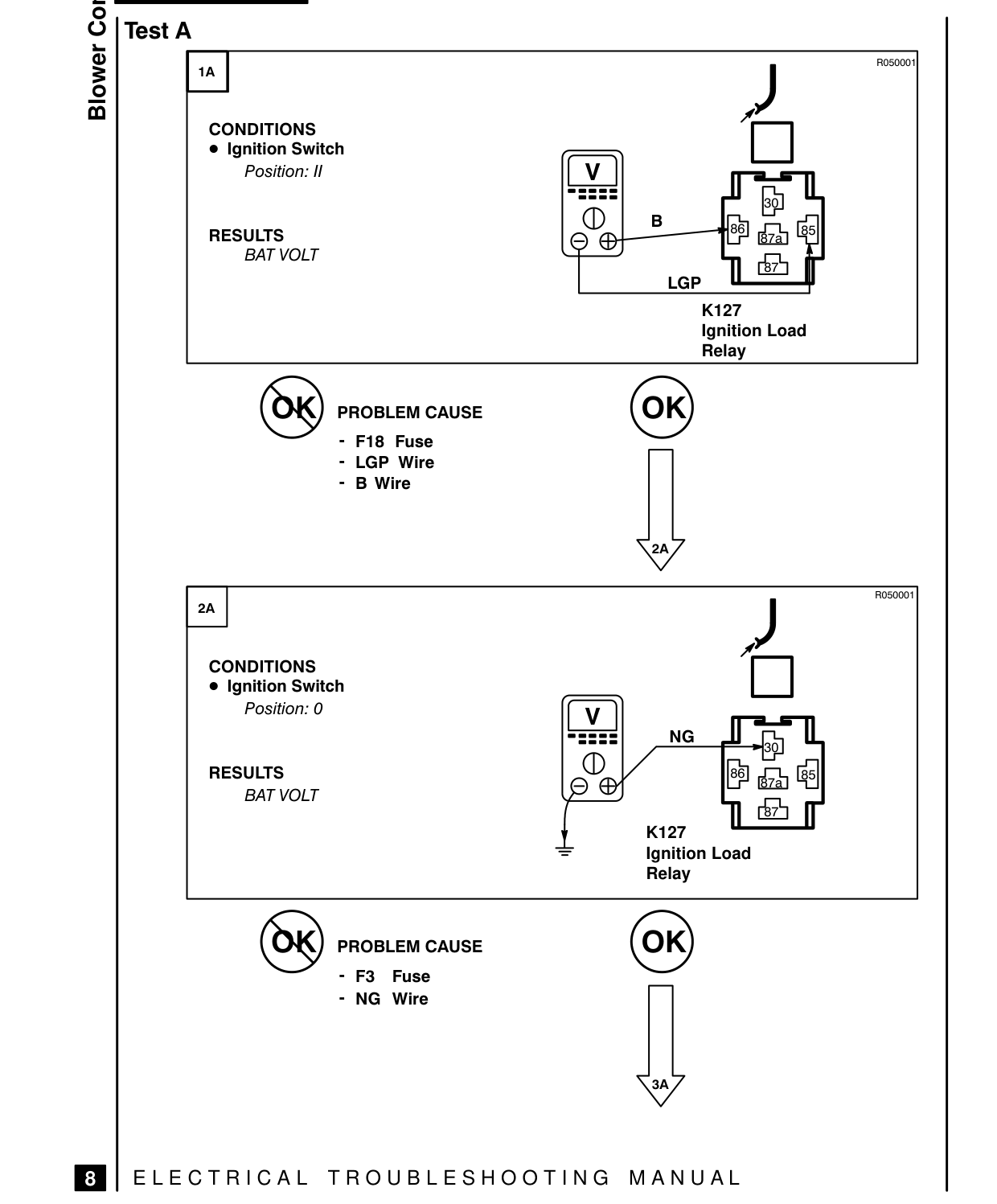

BLOWER CONTROLS – FAULT DIAGNOSIS
Cc lo] O |Test A Sm
CONDITIONS ® Ignition Switch Position: I
RESULTS BAT VOLT
(59) PROBLEM CAUSE F18 Fuse - LGP Wire - B Wire
e Ignition Switch CONDITIONS
Position: 0
TS
(59) PROBLEM CAUSE F3 Fuse
- NG Wire
EJ | ELECTRICAL TROUBLESHOOTING MANUAL
R050001
Li] K127 Ignition Load Relay
R050001
NG a0] iL K127 Yh Ignition Load Relay
