BLOWER CONTROLS – FAULT DIAGNOSIS

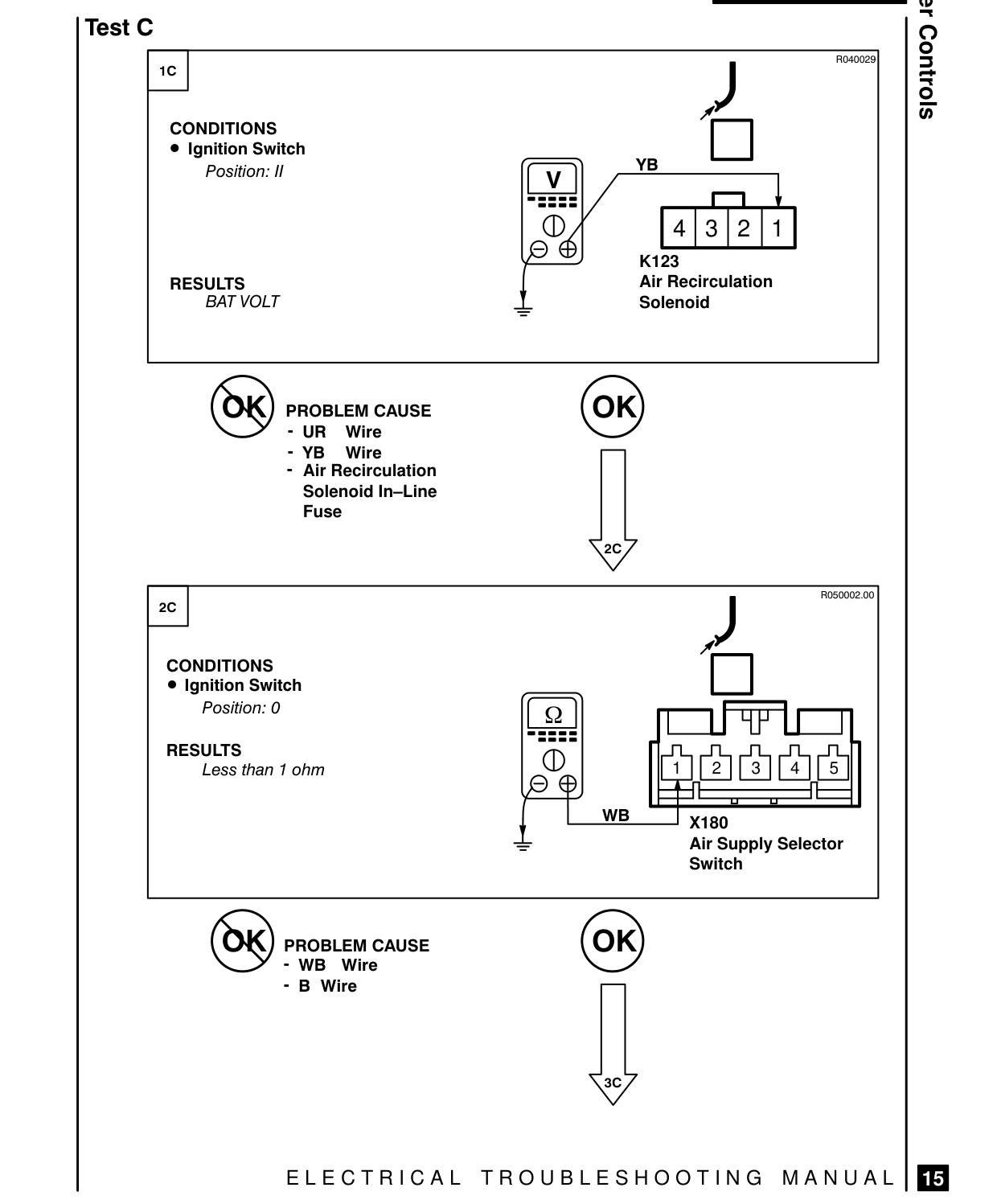

Test C

CONDITIONS ® Ignition Switch Position: II

RESULTS BAT VOLT

(5) PROBLEM CAUSE - UR Wire - YB Wire Air Recirculation Solenoid In-Line Fuse

CONDITIONS ® Ignition Switch Position: 0

Less than 1 ohm RESULTS

(59) PROBLEM CAUSE - WB Wire - B Wire

ELECTRICAL TROUBLESHOOTING MANUAL

R040029

YB

aH

SAC K123 AN

Air Recirculation Solenoid

R050002.00

EREREER LS] UF OX [1] [2] [3] [4] [5] SA He we X180 Air Supply Selector Switch
