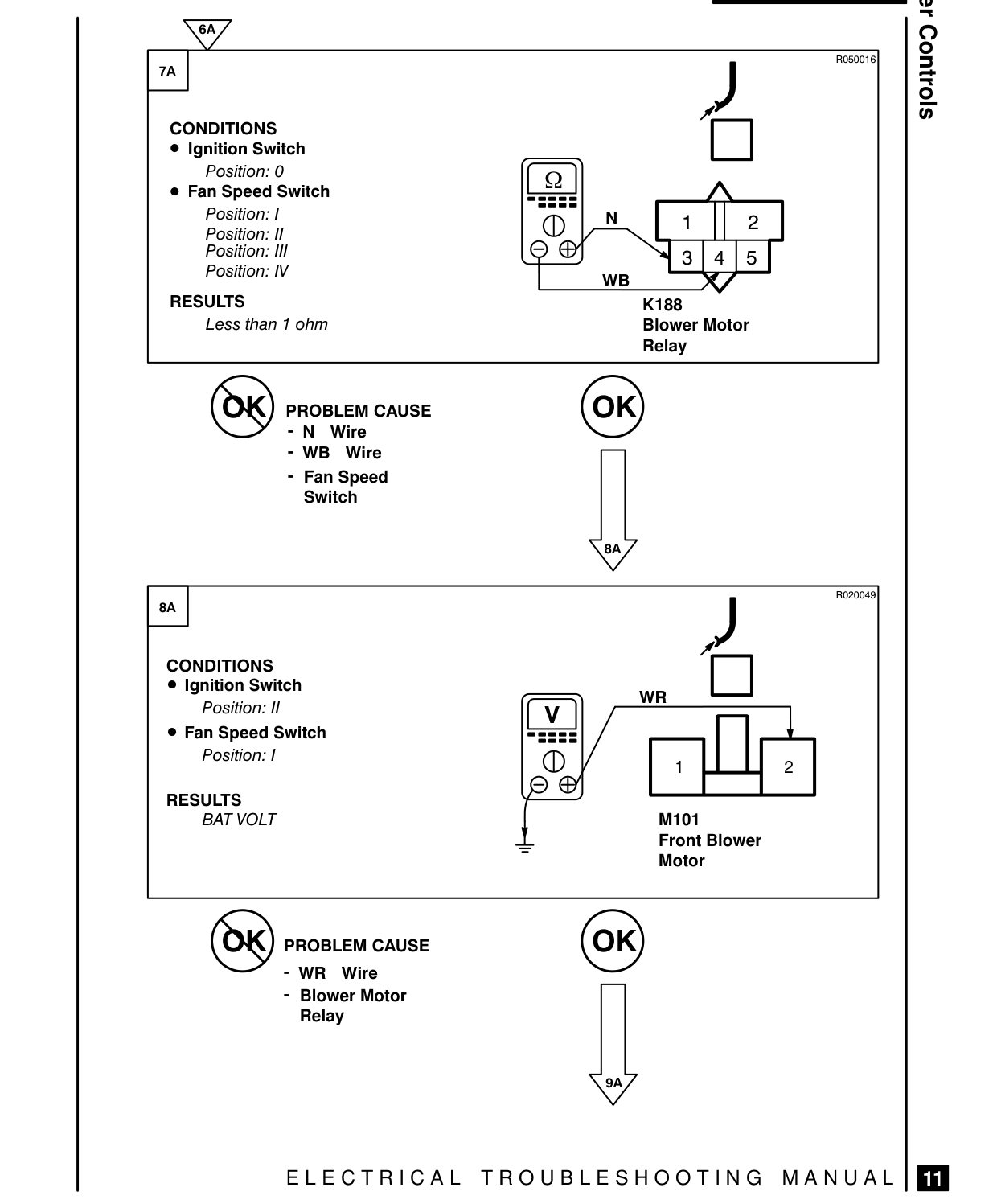

BLOWER CONTROLS – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch Position: 0 eo Fan Speed Switch Position: | Position: II Position: Ill Position: IV RESULTS Less than 1 ohm

(5) PROBLEM CAUSE Wire - WB Wire

- Fan Speed Switch

CONDITIONS Ignition Switch Position: Il ® Fan Speed Switch Position: |

RESULTS BAT VOLT

(59) PROBLEM CAUSE - WR Wire

Blower Motor Relay

ELECTRICAL TROUBLESHOOTING MANUAL | ki

oD

R050016

NN 1

K188 Blower Motor Relay

R020049

WR ss=== OD

M101 Front Blower Motor

30 General
