Blower controls – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover Classic Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Blower controls – fault diagnosis
Blower controlsBlower controls – fault diagnosis

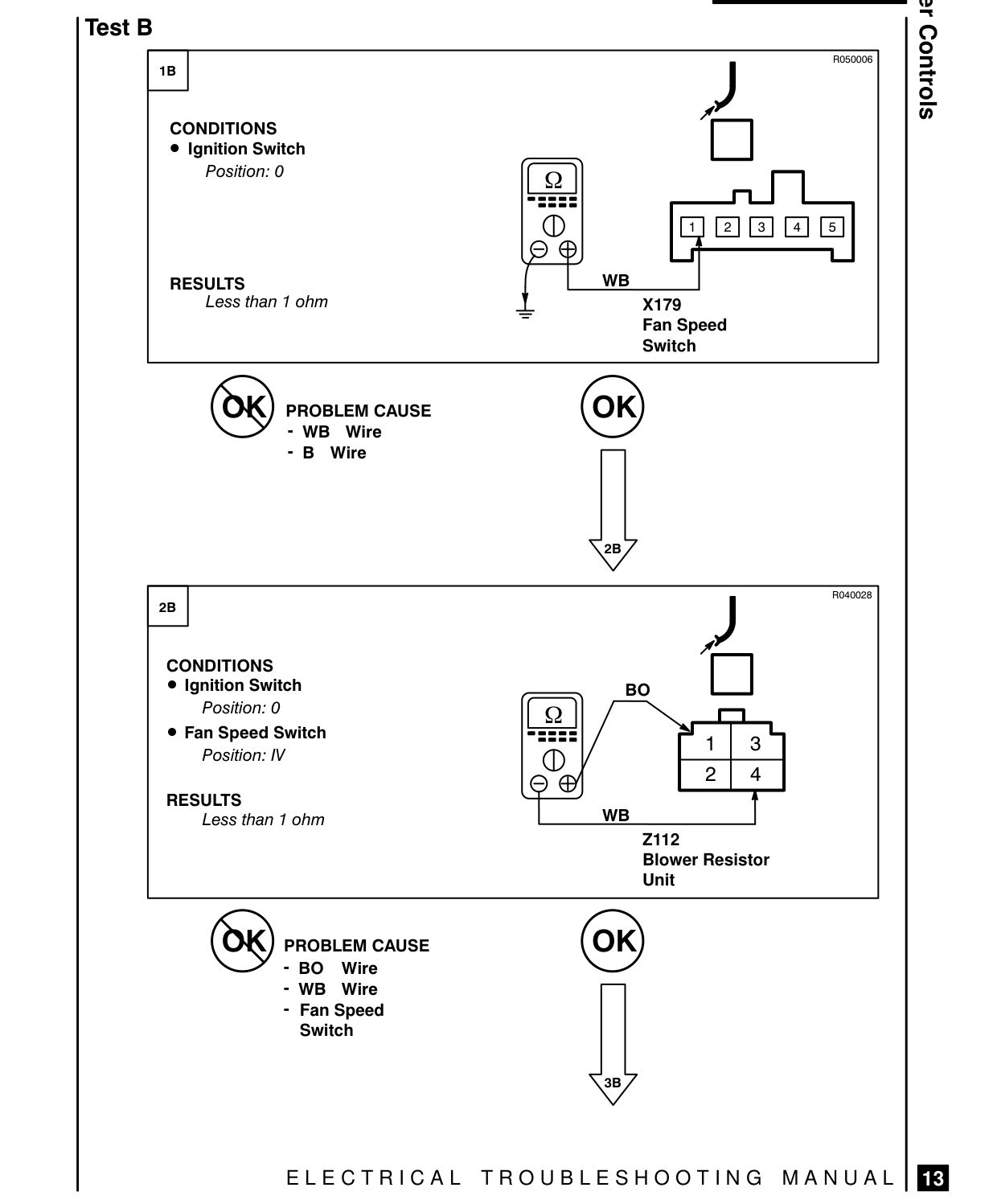

BLOWER CONTROLS – FAULT DIAGNOSIS
Test B
CONDITIONS ® Ignition Switch Position: 0
RESULTS Less than 1 ohm
(5) PROBLEM CAUSE - WB Wire Wire
2s | CONDITIONS ® Ignition Switch Position: 0 ® Fan Speed Switch Position: IV
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - BO Wire - WB Wire - Fan Speed Switch
ELECTRICAL TROUBLESHOOTING MANUAL | [iH
R050006
OP
WB X179 Fan Speed Switch
R040028
BO
aD XC JU
wB 2112 Blower Resistor Unit
