Central locking (Japan) – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Central locking (Japan) – circuit diagram

Central locking (Japan)Central locking (Japan) – circuit diagram

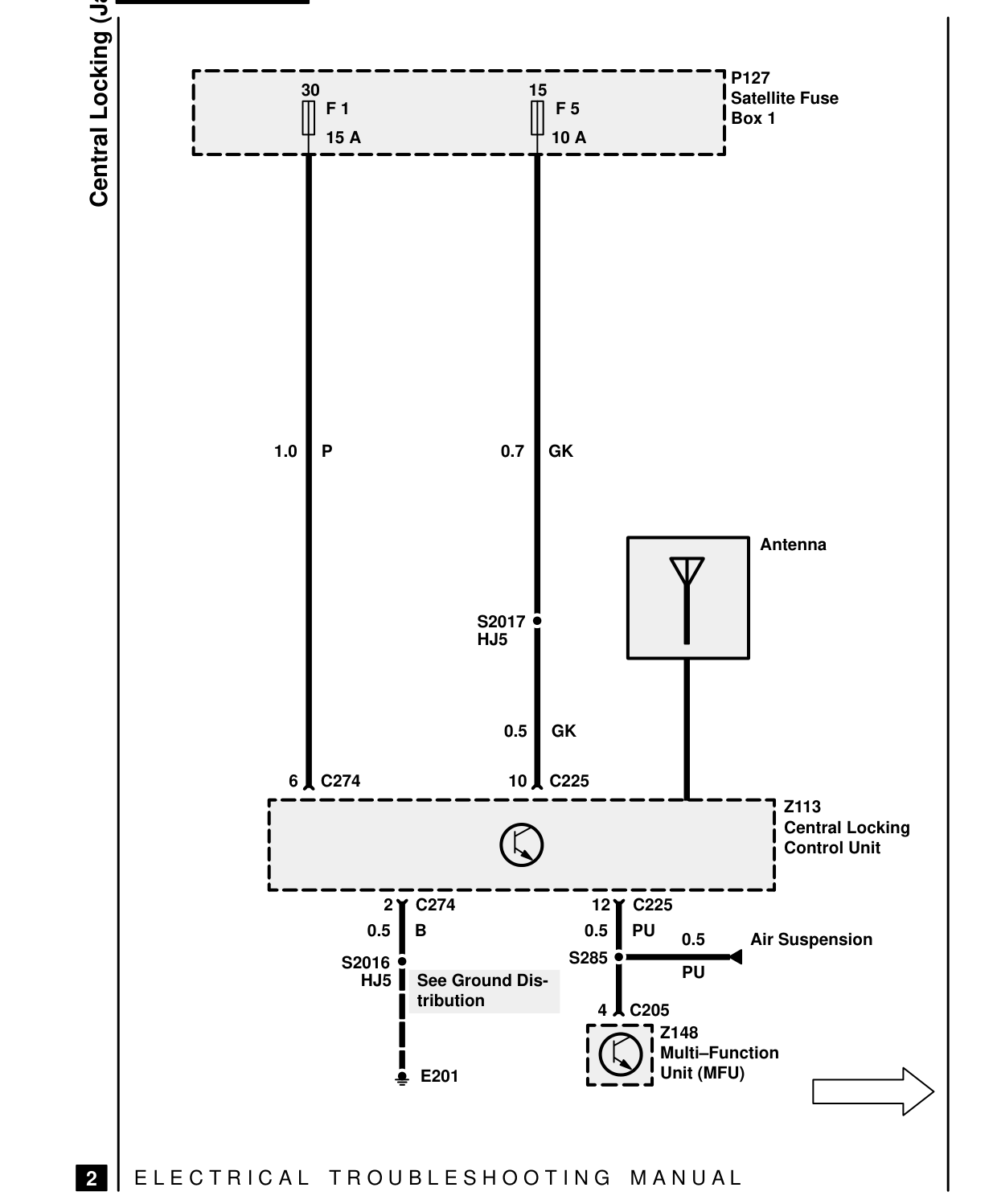

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM

Central Locking (Japan) 30 F 1 15 A

1.0 P

6 C274

2 C274 0.5 B S2016 See Ground Dis- HJ5 tribution

E201

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P127 15 Satellite Fuse F 5 Box 1 10 A

0.7 GK

Antenna

S2017 HJ5

0.5 GK

10 C225 Z113 Central Locking Control Unit

12 C225 0.5 PU Air Suspension 0.5 S285 PU

4 C205 Z148 Multi-Function Unit (MFU)

M A N U A L

36 General
