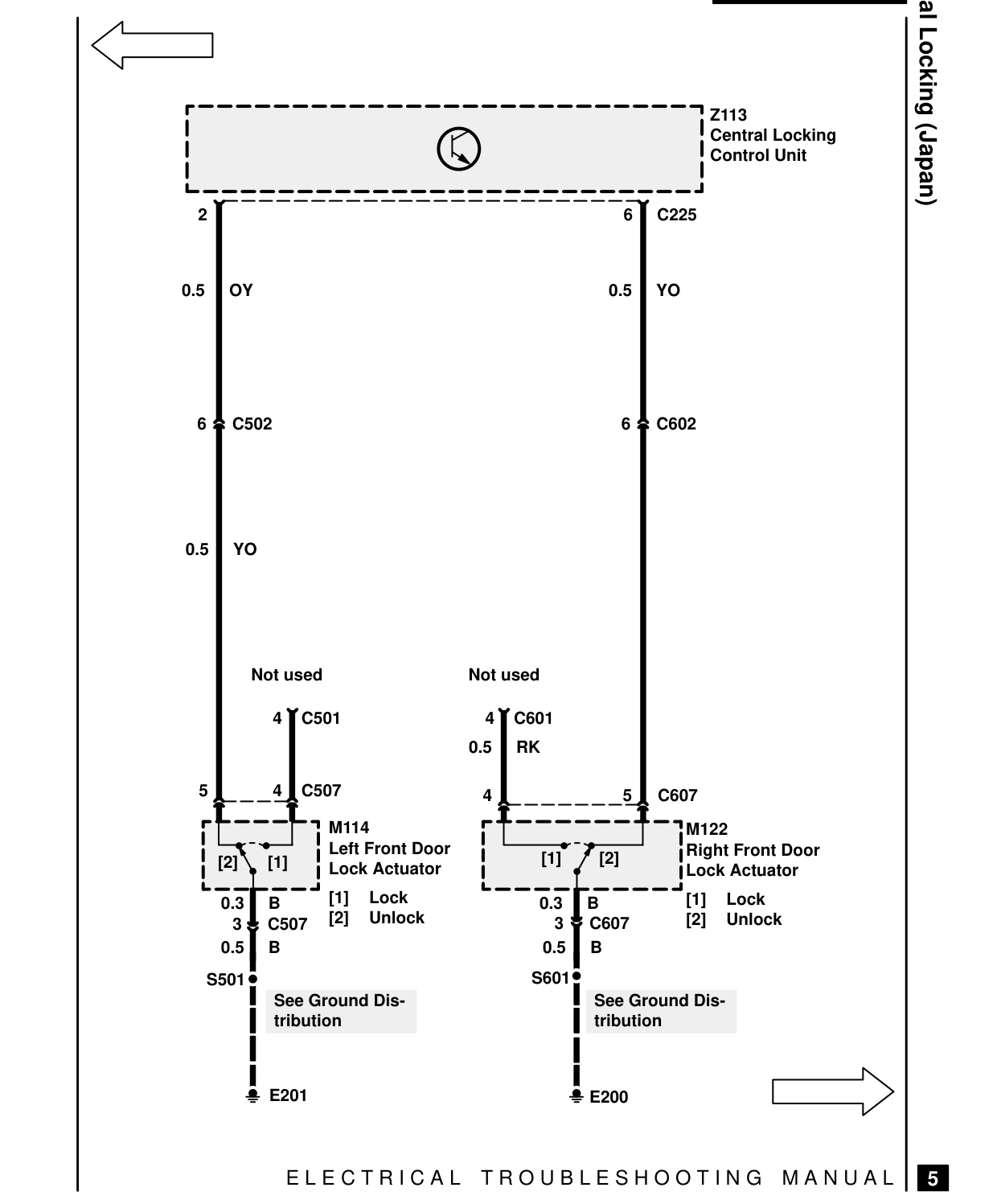

Central locking (Japan) – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Central locking (Japan) – circuit diagram

Central locking (Japan)Central locking (Japan) – circuit diagram

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM

2

0.5 OY

6 C502

0.5 YO

Not used Not used

4 C501 0.5

4 C507 5

M114 Left Front Door [2] [1] Lock Actuator [1] Lock 0.3 B [2] Unlock 3 C507 0.5 B S501 See Ground Dis- tribution

E201

E L E C T R I C A L

Central Locking (Japan) Z113 Central Locking Control Unit

6 C225

0.5 YO

6 C602

4 C601 RK

4 5 C607

M122 Right Front Door [1] [2] Lock Actuator [1] Lock 0.3 B [2] Unlock 3 C607 0.5 B S601 See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L

5

36 General
