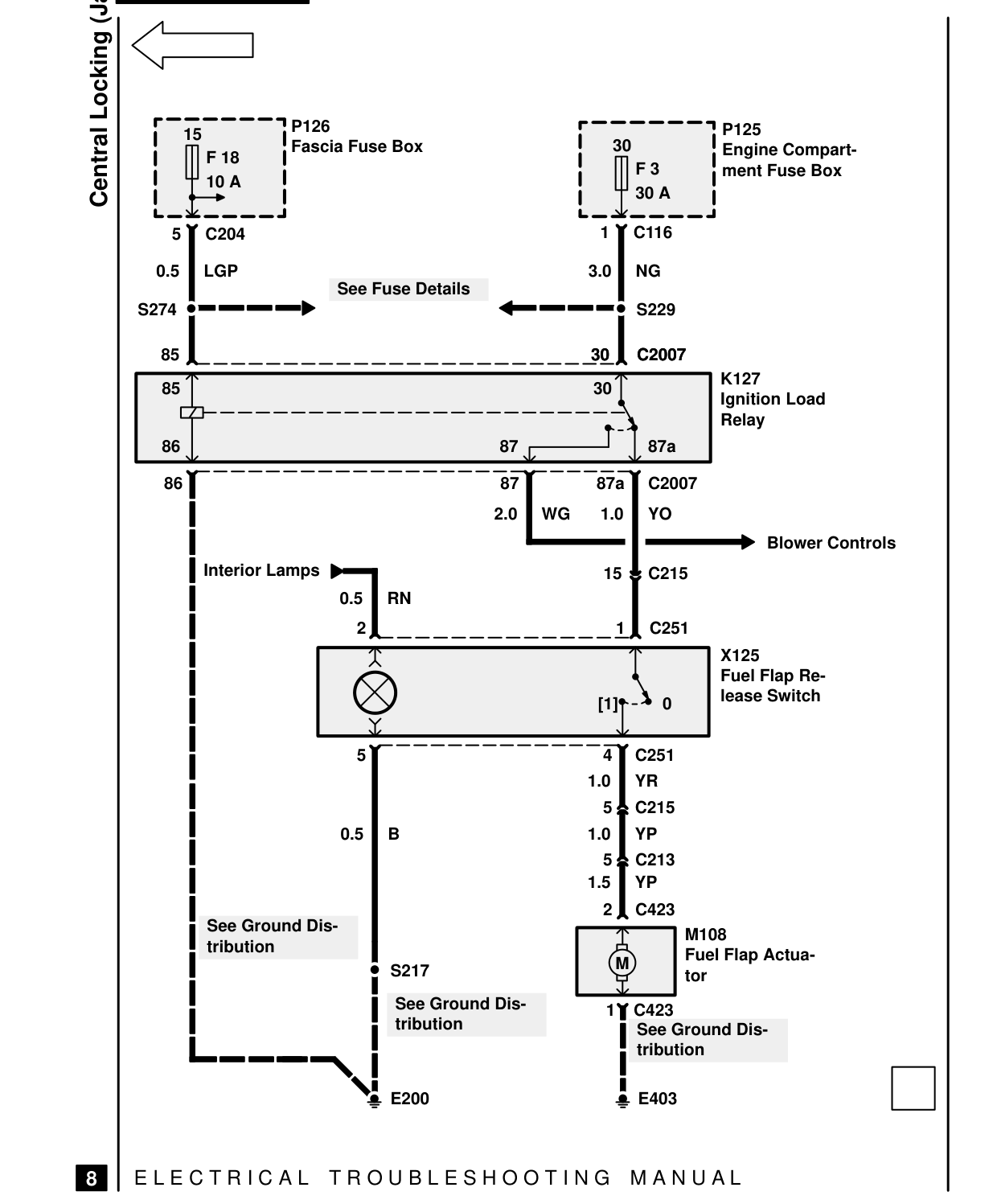

Central locking (Japan) – circuit diagram

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM

Central Locking (Japan) P126 15 Fascia Fuse Box F 18 10 A

5 C204

0.5 LGP See Fuse Details S274

85

85

86

86

Interior Lamps 0.5 RN 2

5

0.5 B

See Ground Dis- tribution S217 See Ground Dis- tribution

E200

E L E C T R I C A L T R O U B L E S H O O T I N G

8

P125 30 Engine Compart- F 3 ment Fuse Box 30 A

1 C116

3.0 NG

S229

30 30 C2007 C2007 K127 30 Ignition Load Relay 87a 87

87 87a C2007 2.0 WG 1.0 YO Blower Controls 15 C215

1 C251 X125 Fuel Flap Re- lease Switch [1] 0

4 C251 1.0 YR 5 C215 1.0 YP 5 C213 1.5 YP 2 C423 M108 Fuel Flap Actua- M tor

1 C423 See Ground Dis- tribution

E403

M A N U A L
