Compressor controls – circuit diagram

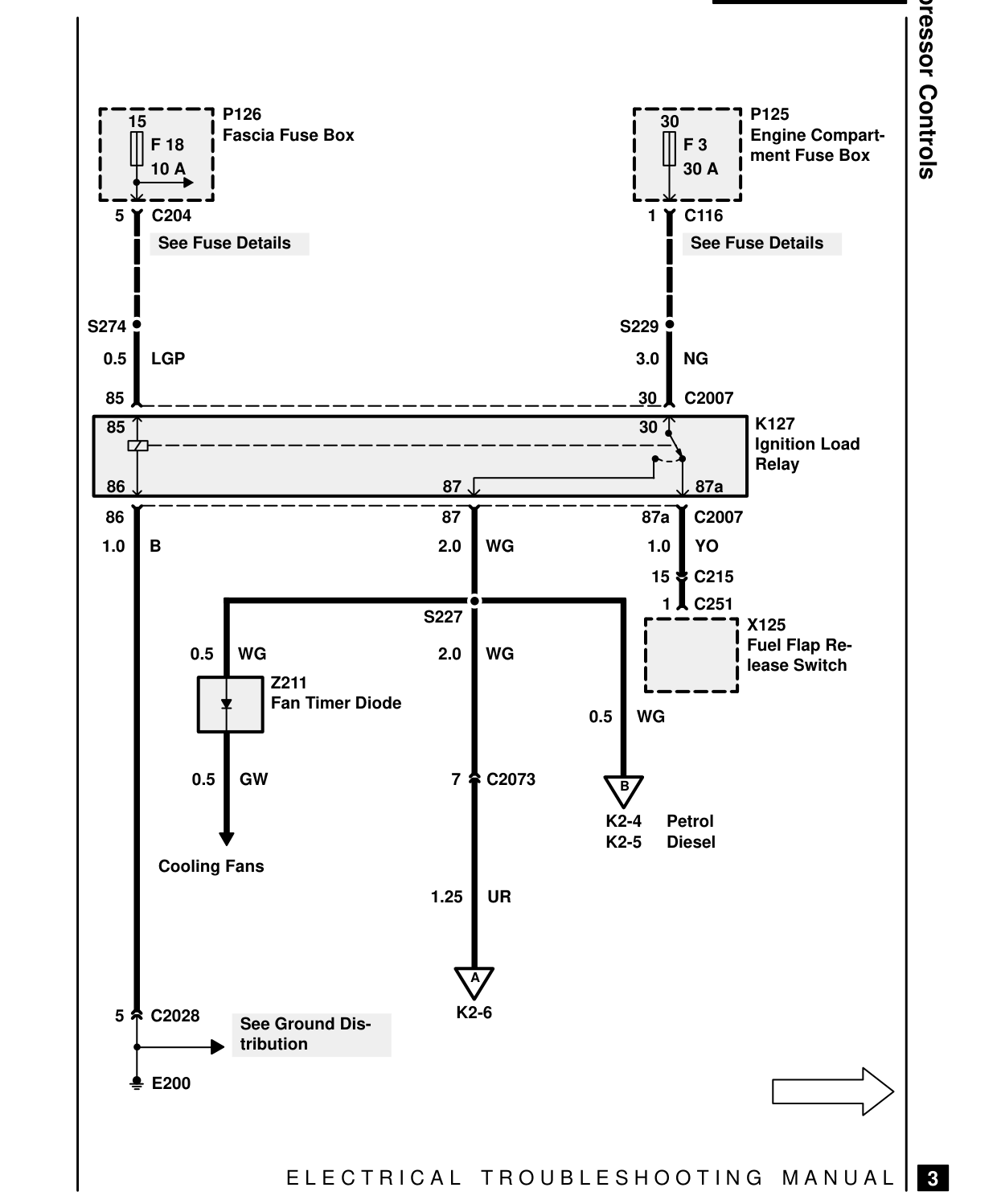

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

P126 15 Fascia Fuse Box F 18 10 A

5 C204 See Fuse Details

S274 0.5 LGP

85 85

86 87 86 87 1.0 B 2.0

S227

2.0 0.5 WG Z211 Fan Timer Diode

0.5 GW 7

Cooling Fans 1.25

A

K2-6 5 C2028 See Ground Dis- tribution

E200

E L E C T R I C A L

Compressor Controls P125 30 Engine Compart- F 3 ment Fuse Box 30 A

1 C116 See Fuse Details

S229 3.0 NG

30 C2007 K127 30 Ignition Load Relay 87a 87a C2007 1.0 YO WG 15 C215 1 C251 X125 Fuel Flap Re- WG lease Switch

0.5 WG

C2073 B

Petrol K2-4 K2-5 Diesel

UR
