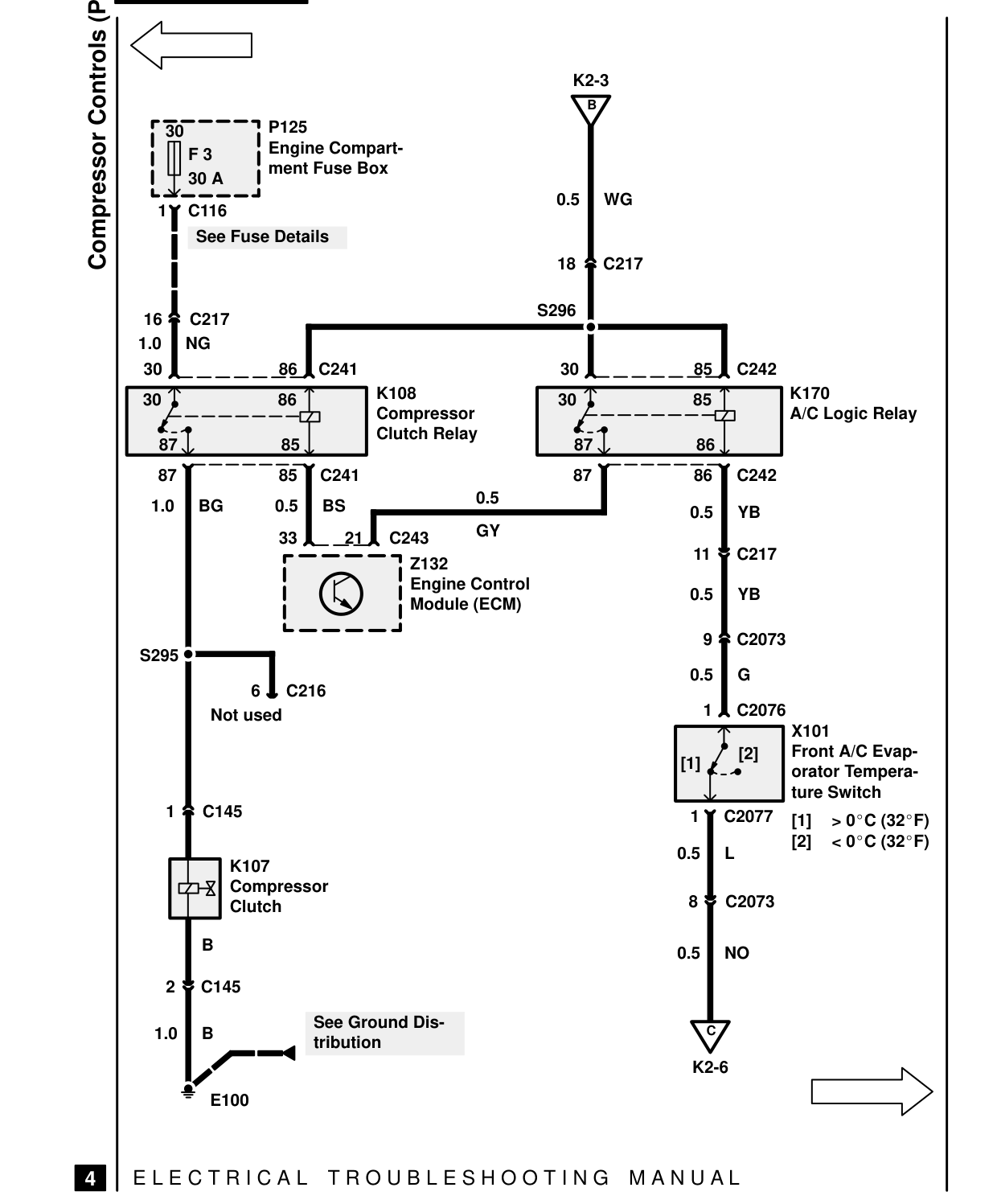

Compressor controls – circuit diagram

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

Compressor Controls (Petrol) P125 30 Engine Compart- F 3 ment Fuse Box 30 A 1 C116 See Fuse Details

16 C217 1.0 NG 30 86 C241 K108 30 86 Compressor Clutch Relay 87 85 87 85 C241 1.0 BG 0.5 BS 33 21 C243 Z132 Engine Control Module (ECM)

S295

6 C216 Not used

1 C145

K107 Compressor Clutch

B

2 C145

See Ground Dis- 1.0 B tribution

E100

E L E C T R I C A L T R O U B L E S H O O T I N G

4

K2-3 B

0.5 WG

18 C217

S296

30 85 C242 K170 30 85 A/C Logic Relay 87 86 87 86 C242 0.5 0.5 YB GY 11 C217

0.5 YB

9 C2073

0.5 G

1 C2076 X101 Front A/C Evap- [2] [1] orator Tempera- ture Switch 1 C2077 [1]

> 0
C (32
F)

[2]

< 0
C (32
F)

0.5 L

8 C2073

0.5 NO

C

K2-6

M A N U A L
