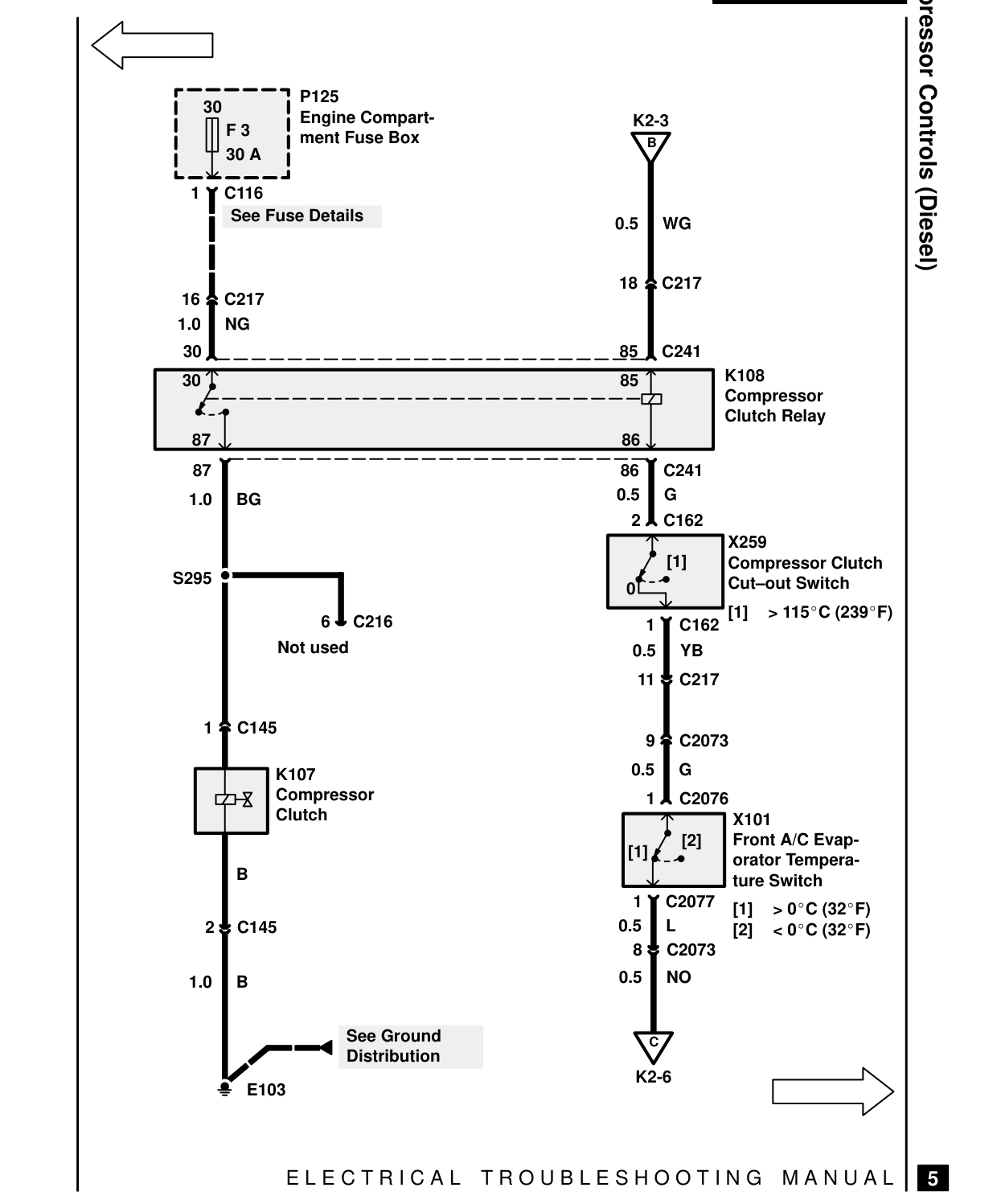

Compressor controls – circuit diagram

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

P125 30 Engine Compart- F 3 ment Fuse Box 30 A

1 C116 See Fuse Details

16 C217 1.0 NG 30 30

87 87 1.0 BG

S295

6 C216 Not used

1 C145

K107 Compressor Clutch

B

2 C145

1.0 B

See Ground Distribution

E103

E L E C T R I C A L

Compressor Controls (Diesel) K2-3 B

0.5 WG

18 C217

85 C241 K108 85 Compressor Clutch Relay 86 86 C241 0.5 G 2 C162 X259 [1] Compressor Clutch Cut-out Switch 0 [1]

> 115
C (239
F)

1 C162 0.5 YB 11 C217

9 C2073 0.5 G 1 C2076 X101 Front A/C Evap- [2] [1] orator Tempera- ture Switch 1 C2077 [1]

> 0
C (32
F)

0.5 L [2]

< 0
C (32
F)

8 C2073 0.5 NO

C

K2-6
