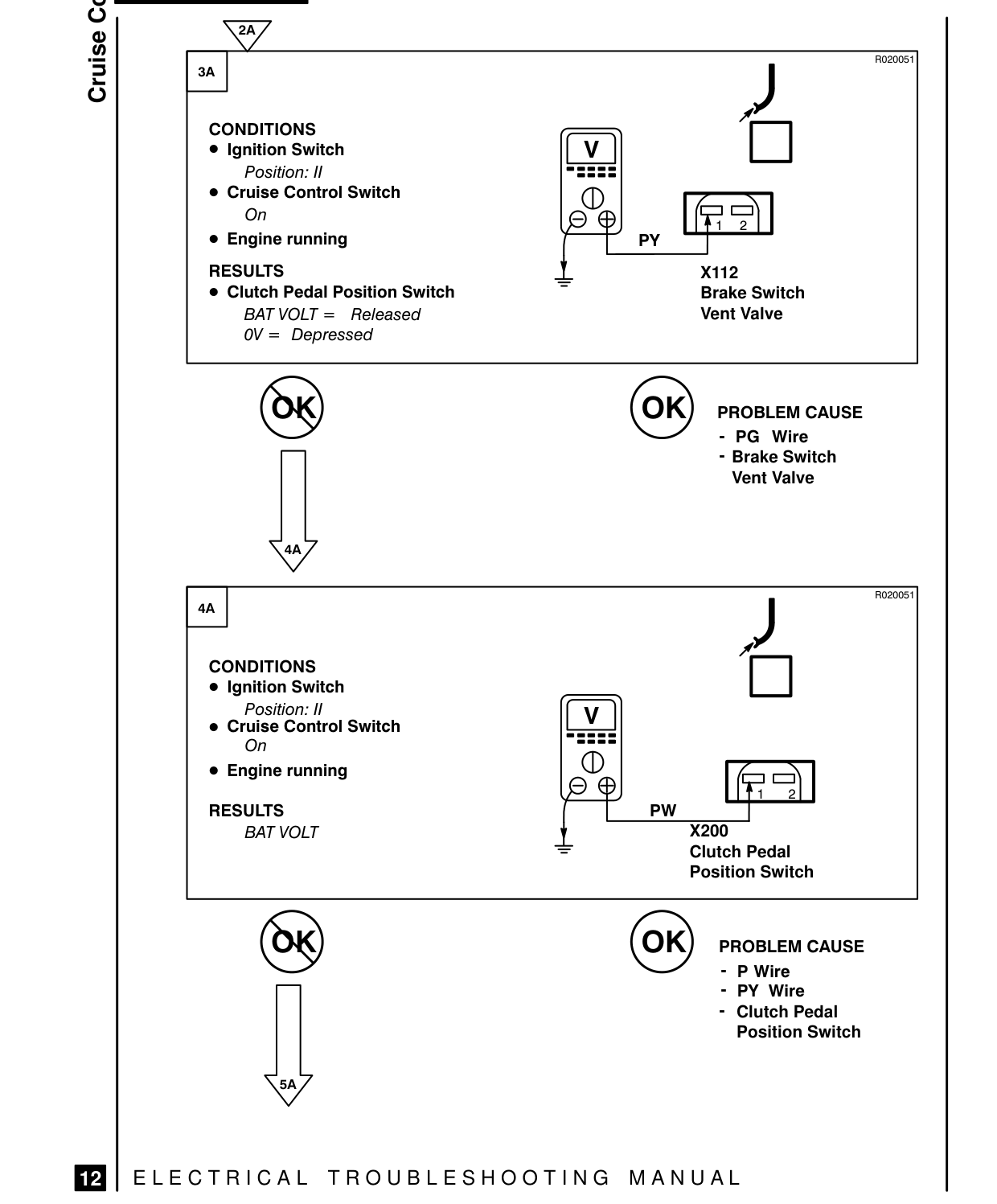

Cruise control – fault diagnosis

CRUISE CONTROL – FAULT DIAGNOSIS

3S

Sh © CONDITIONS ® Ignition Switch Position: Il eo Cruise Control Switch on oe Engine running

RESULTS eo Clutch Pedal Position Switch BAT VOLT = Released 0V = Depressed

(59)

CONDITIONS ® Ignition Switch Position: Il ® Cruise Control Switch On eo Engine running

RESULTS BAT VOLT

(59)

EB | ELECTRICAL TROUBLESHOOTING MANUAL

R020051

cal [BR PY

X112 Brake Switch Vent Valve

PROBLEM CAUSE - PG Wire - Brake Switch Vent Valve

R020051

DO “ll oO

PW X200 Clutch Pedal Position Switch

PROBLEM CAUSE P Wire - PY Wire Clutch Pedal Position Switch
