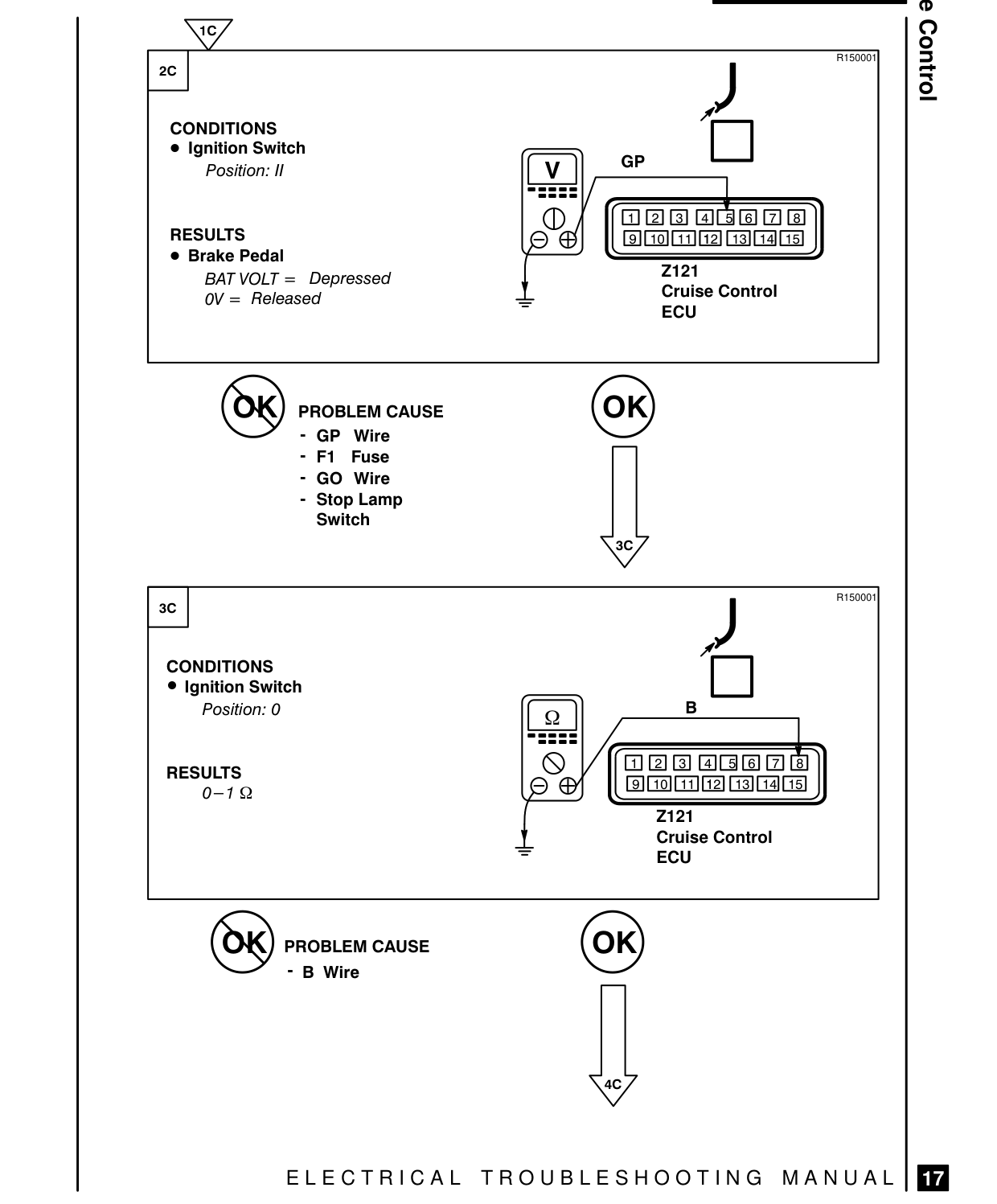

CRUISE CONTROL – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch Position: II

RESULTS ® Brake Pedal BAT VOLT = Depressed V = Rel elease

(59) PROBLEM CAUSE - GP Wire F1 Fuse - GO Wire - Stop Lamp Switch

CONDITIONS ® Ignition Switch Position: 0

RESULTS 0-10

(59) PROBLEM CAUSE - B Wire
