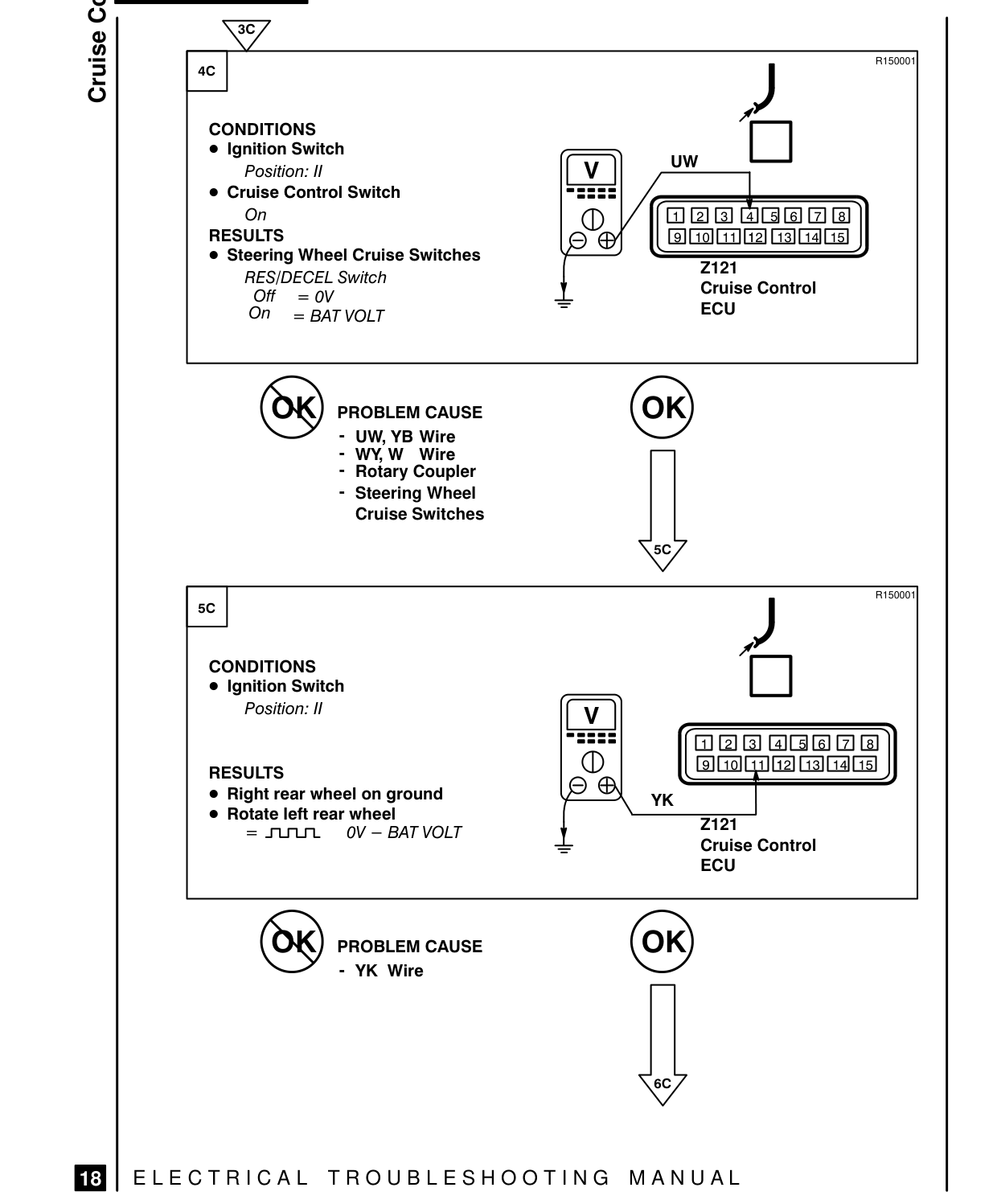

Cruise control – fault diagnosis

CRUISE CONTROL – FAULT DIAGNOSIS

12] NZ ac Sm

CONDITIONS ® Ignition Switch Position: II ® Cruise Control Switch On RESULTS o Steering Wheel Cruise Switches RES/DECEL Switch Off = ov On = BATVOLT

(59) PROBLEM CAUSE - UW, YB Wire - WY,W Wire - Rotary Coupler - Steering Wheel Cruise Switches

CONDITIONS e Ignition Switch Position: II

RESULTS ® Right rear wheel on ground eo Rotate left rear wheel = rn ov -— BATVOLT

(59) PROBLEM CAUSE - YK Wire

BB}| ELECTRICAL TROUBLESHOOTING MANUAL

R150001

uw ol 111

[ol tol [11] [12] ZT Cruise Control ECU

R150001

Do (BEzEneng) [el[ial Oa YK 7121 Cruise Control ECU
