Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

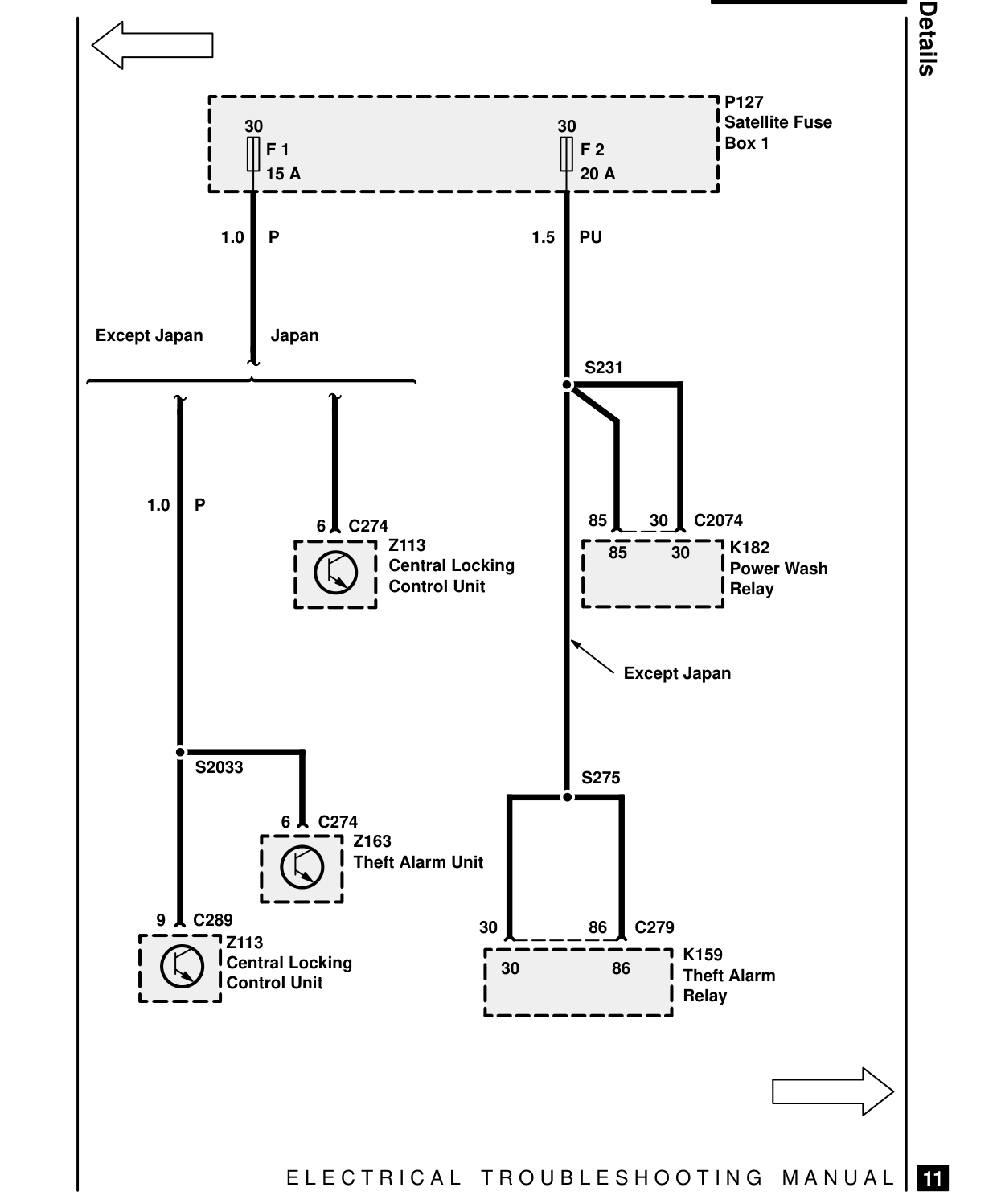

FUSE DETAILS – CIRCUIT DIAGRAM

30 F 1 15 A

1.0 P

Except Japan Japan

1.0 P 6 C274 Z113 Central Locking Control Unit

S2033

6 C274 Z163 Theft Alarm Unit

9 C289 Z113 Central Locking Control Unit

E L E C T R I C A L

Fuse Details P127 Satellite Fuse 30 Box 1 F 2 20 A

1.5 PU

S231

85 30 C2074 K182 85 30 Power Wash Relay

Except Japan

S275

30 86 C279 K159 30 86 Theft Alarm Relay

T R O U B L E S H O O T I N G M A N U A L

11

47 General
