Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

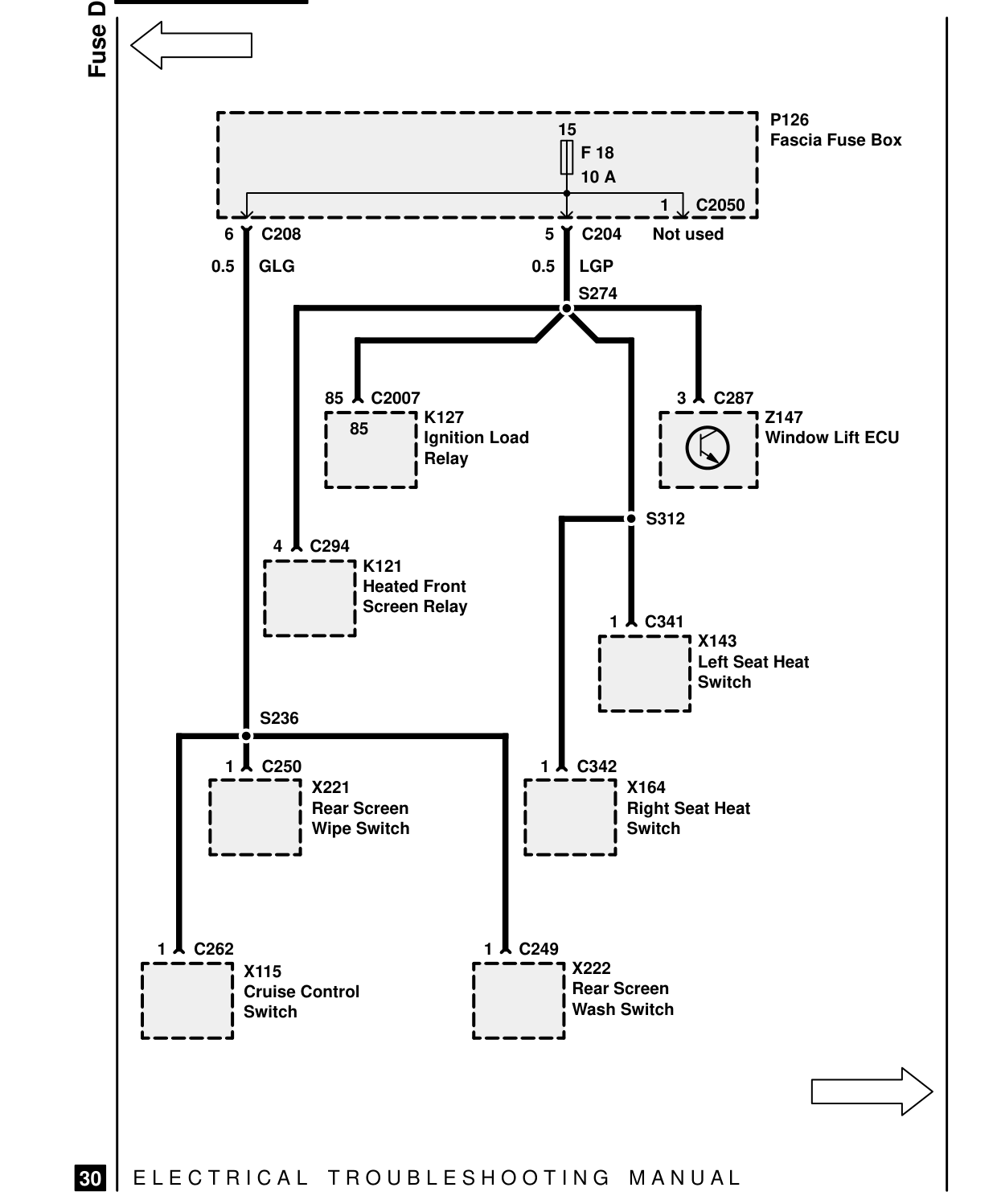

FUSE DETAILS – CIRCUIT DIAGRAM

Fuse Details

6 C208 0.5 GLG

85 C2007 K127 85 Ignition Load Relay

4 C294 K121 Heated Front Screen Relay

S236

1 C250 X221 Rear Screen Wipe Switch

1 C262 X115 Cruise Control Switch

E L E C T R I C A L T R O U B L E S H O O T I N G

30

P126 15 Fascia Fuse Box F 18 10 A 1 C2050 Not used 5 C204 0.5 LGP S274

3 C287 Z147 Window Lift ECU

S312

1 C341 X143 Left Seat Heat Switch

1 C342 X164 Right Seat Heat Switch

1 C249 X222 Rear Screen Wash Switch
