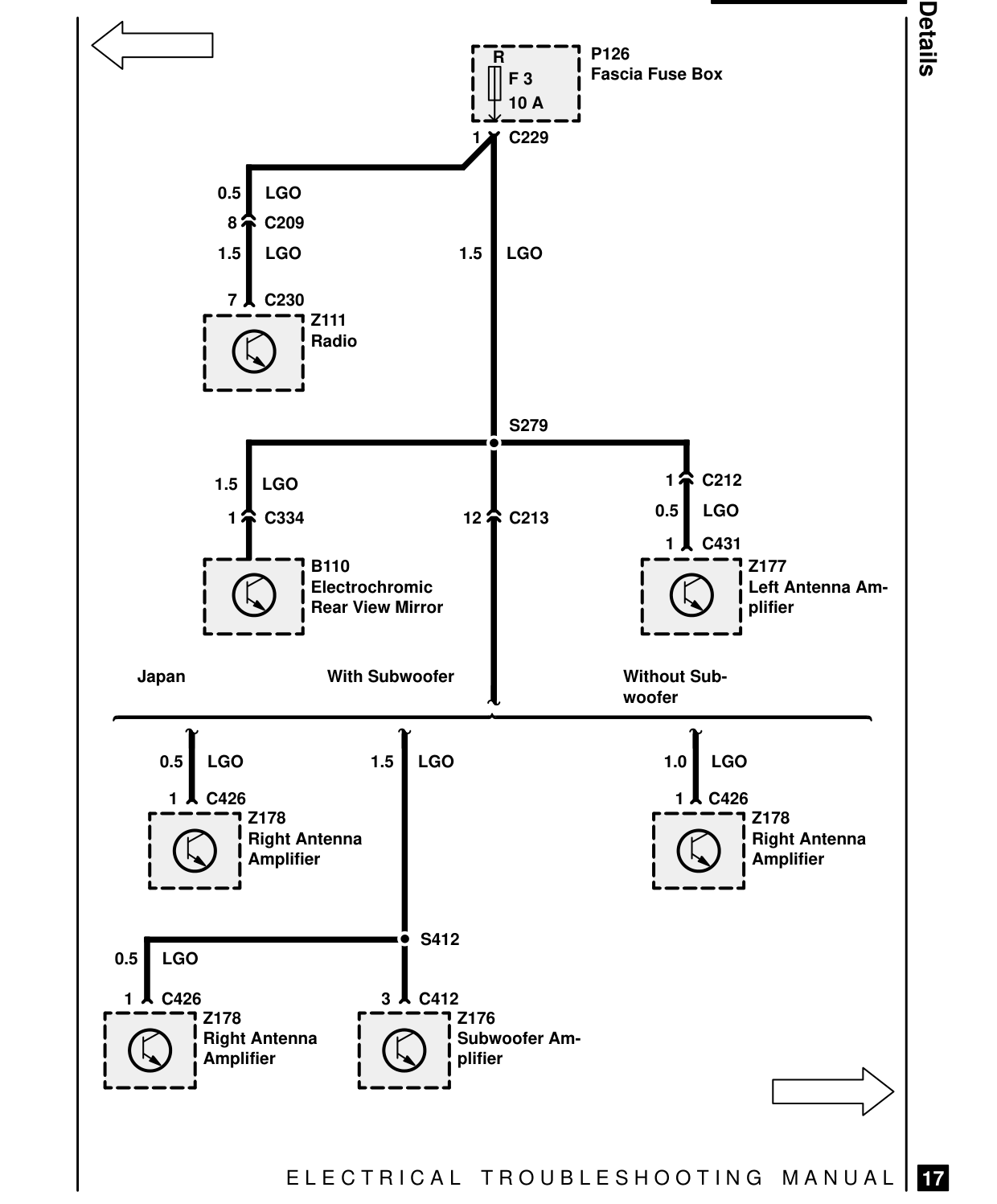

Fuse details – circuit diagram

FUSE DETAILS – CIRCUIT DIAGRAM

1

0.5 LGO 8 C209 1.5 1.5 LGO

7 C230 Z111 Radio

1.5 LGO

12 1 C334

B110 Electrochromic Rear View Mirror

Japan With Subwoofer

0.5 LGO 1.5 LGO

1 C426 Z178 Right Antenna Amplifier

S412 0.5 LGO

3 C412 1 C426 Z178 Z176 Right Antenna Subwoofer Am- Amplifier plifier

E L E C T R I C A L

Fuse Details P126 R Fascia Fuse Box F 3 10 A

C229

LGO

S279

1 C212 0.5 LGO C213 1 C431 Z177 Left Antenna Am- plifier

Without Sub- woofer

1.0 LGO

1 C426 Z178 Right Antenna Amplifier

T R O U B L E S H O O T I N G M A N U A L

17
