Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

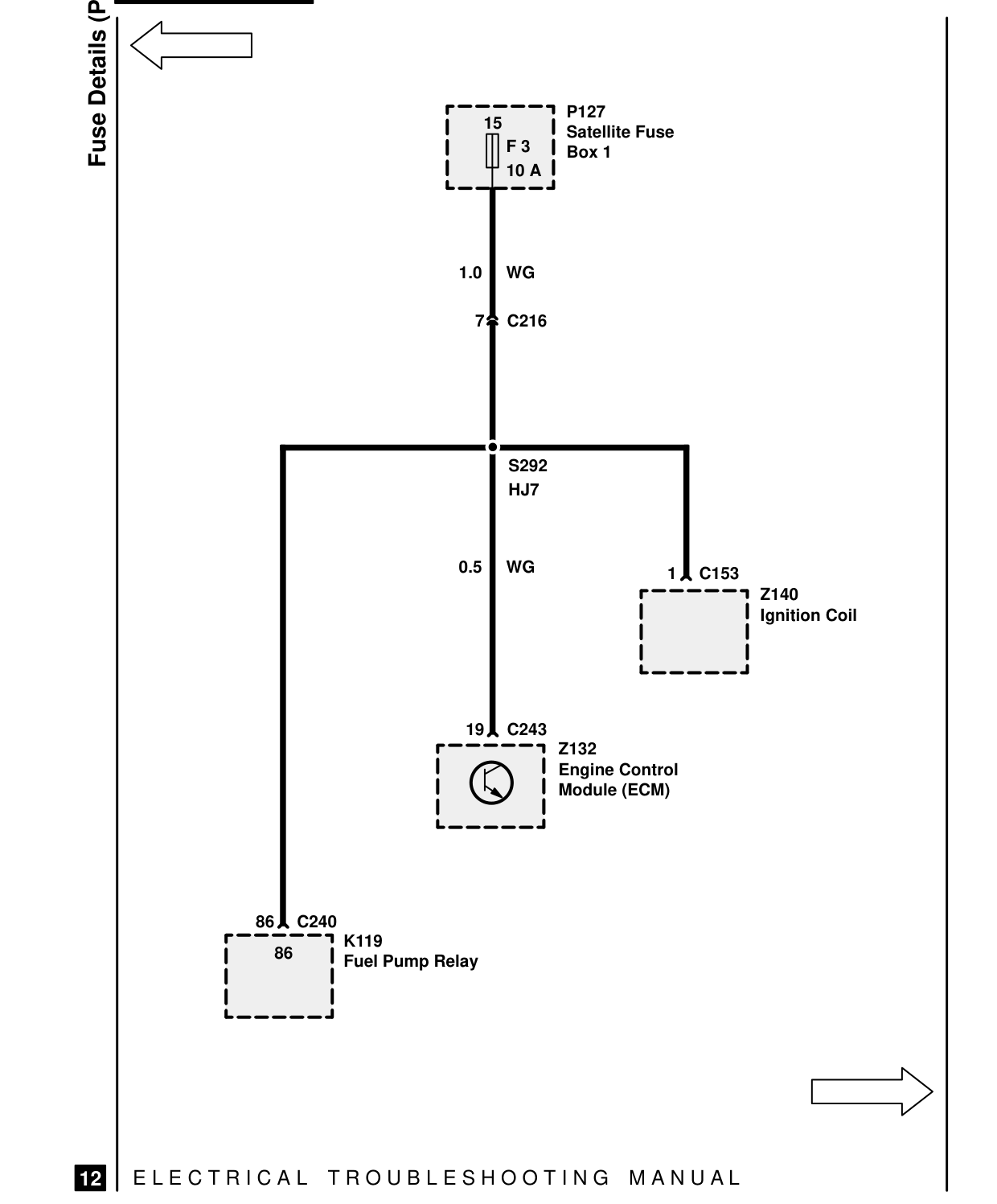

FUSE DETAILS – CIRCUIT DIAGRAM

Fuse Details (Petrol)

86 C240 K119 86 Fuel Pump Relay

E L E C T R I C A L T R O U B L E S H O O T I N G

12

P127 15 Satellite Fuse F 3 Box 1 10 A

1.0 WG

7 C216

S292 HJ7

0.5 WG 1 C153 Z140 Ignition Coil

19 C243 Z132 Engine Control Module (ECM)

M A N U A L

47 General
