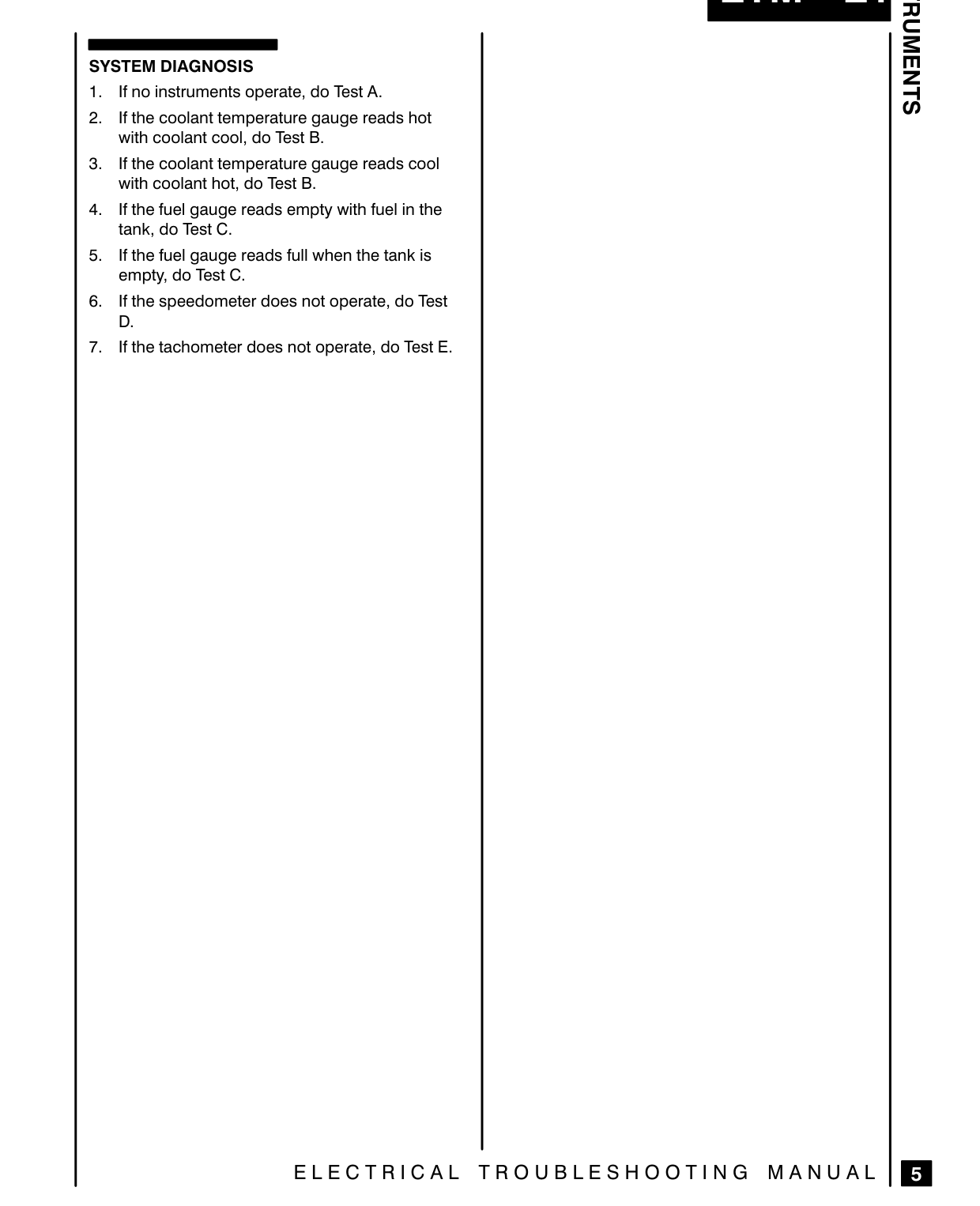

INSTRUMENTS – FAULT DIAGNOSIS

SYSTEM DIAGNOSIS If no instruments operate, do Test A. Ifthe coolant temperature gauge reads hot with coolant cool, do Test B.

Ifthe coolant temperature gauge reads cool with coolant hot, do Test B.

If the fuel gauge reads empty with fuel in the tank, do Test C.

If the fuel gauge reads full when the tank is empty, do Test C.

If the speedometer does not operate, do Test

Ifthe tachometer does not operate, do Test E.

ELECTRICAL TROUBLESHOOTING MANUAL
