Instruments – fault diagnosis

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Instruments – fault diagnosis

InstrumentsInstruments – fault diagnosis

INSTRUMENTS – FAULT DIAGNOSIS

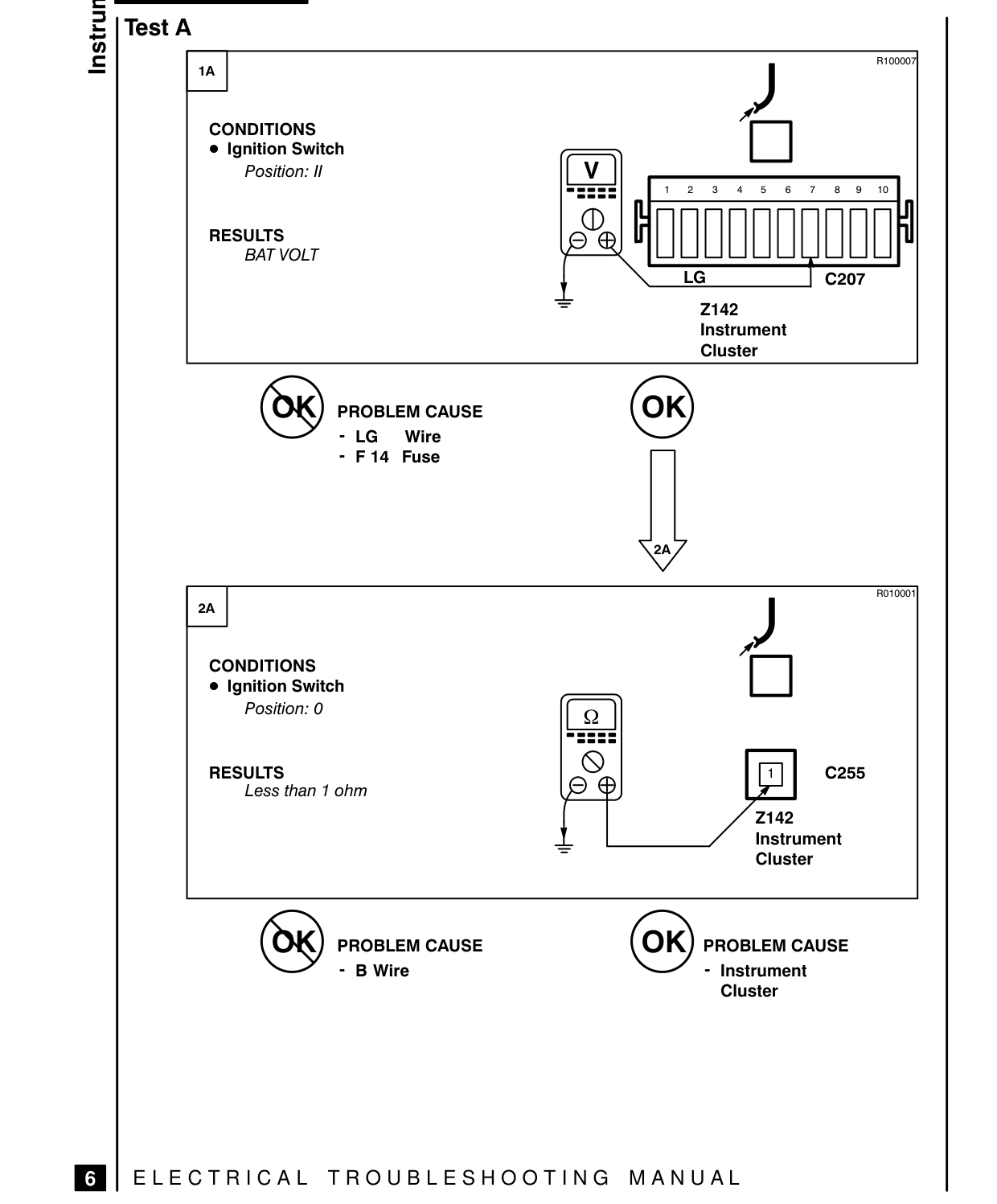

£ E|TestA

CONDITIONS ® Ignition Switch Position: Il

resus BAT VOLT

(5) PROBLEM CAUSE - LG Wire - F14 Fuse

2a |

CONDITIONS ® Ignition Switch Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - B Wire

IB | ELECTRICAL TROUBLESHOOTING MANUAL

R100007,

Sa 00000000 LG C207

2142 Instrument Cluster

RO10001

C255 SAS

2142 Instrument Cluster

PROBLEM CAUSE Instrument Cluster

10 Electrical
